Remote Control Fire Monitor
XFS Series · Explosion-proof · Wireless / wired / manual · 340° travel · Flow 1,200–4,800 LPM · SS304/316
XFS Series
Remote Control Fire Monitor

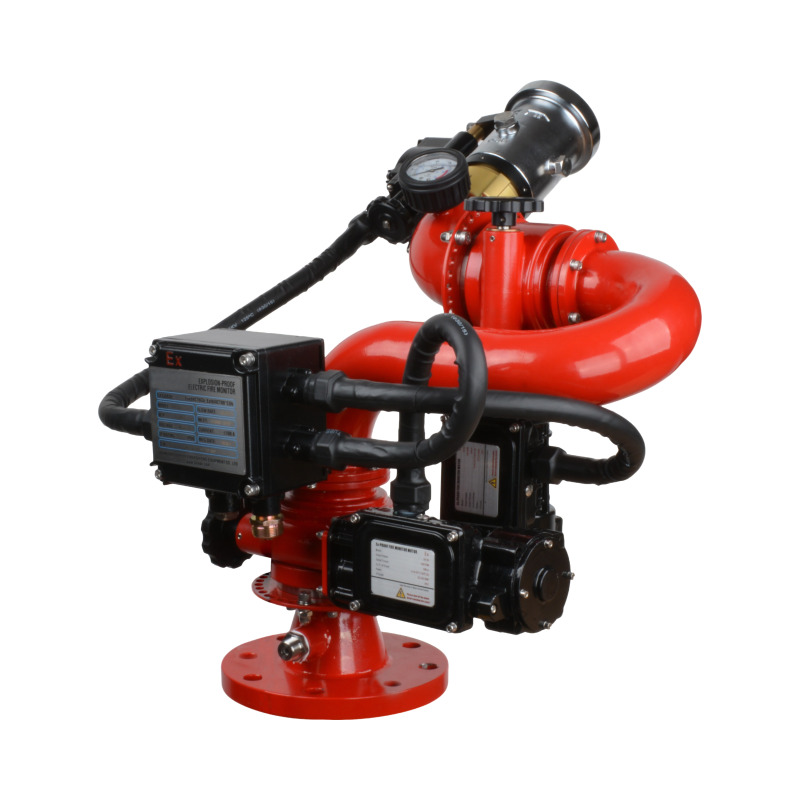

The CA-FIRE XFS series is an explosion-proof electric remote control fire monitor. Operated by wireless transmitter, wired control box or manual hand wheel, it aims and discharges with no person at the monitor — the only viable solution for tunnels, tank farms, LNG terminals and unmanned facilities.
Built on a stainless steel SS304/SS316 body with a travelling angle of 340° horizontal and −45° to +85° vertical, in water and foam-water configurations from 1,200 to 4,800 LPM.
Explosion-Proof
Wireless / Wired / Manual
SS304 / SS316
1,200–4,800
Flow Rate (LPM)
340° / 130°
Travel H / V
AC 220V
Power / 24V Actuator
Ex
Explosion-Proof
Three Control Methods
Wireless Transmitter
Handheld wireless remote lets the operator aim and discharge the monitor from a safe distance, away from the fire and hazard zone.
Wired Control Box
Fixed wired control panel for the control room or a protected operating position — reliable hardwired operation and detection-system integration.
Manual Hand Wheel
Manual hand wheel override for direct local operation if electrical power or remote control is unavailable — the monitor can always be operated.
Technical Configuration
| Monitor Body | Stainless Steel SS304 / SS316 |
| Monitor Nozzle | SS304/316 + brass, or aluminium alloy |
| Hand Wheels | Aluminium alloy |
| Travelling Angle | Horizontal 340° · Vertical −45° to +85° |
| Jetting Pattern | Straight stream + fog (FS), straight (AZ), stacked tips (AZ-4), or foam-water (SP/SQ) |
| Control | Wireless transmitter · Wired control box · Manual hand wheel |
| Power Supply | AC 220V · Motor actuator 24V |
| Working Pressure | 8 bar |
| Rating | Explosion-proof |
Key Features
Explosion-Proof Construction
Suitable for classified hazardous areas — petroleum tank farms, LNG terminals, tunnels and offshore platforms where flammable atmospheres may be present.
Operate From Safety
Wireless or wired remote operation means no person needs to be at the monitor during a fire — the only viable approach for tunnels and unmanned zones.
Wide-Area Coverage
340° horizontal and −45° to +85° vertical travel gives wide-area coverage from a single fixed position, with motorised pan and tilt.
Redundant Manual Override
Manual hand wheel backup ensures the monitor can always be operated if electrical power or remote control is unavailable.
Nozzle & Configuration Options

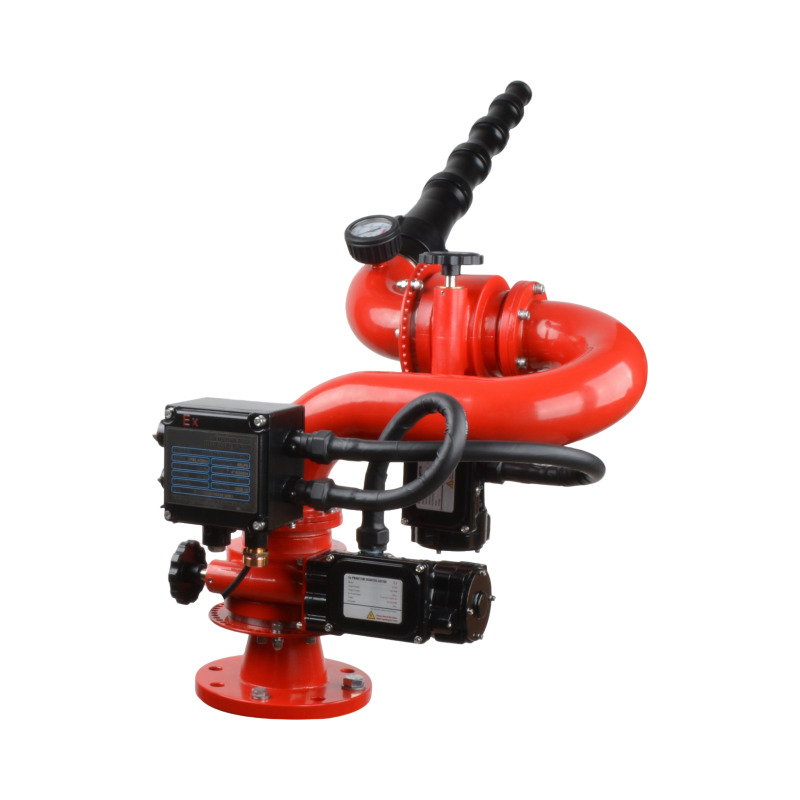

Straight Stream / Stacked-Tip (AZ / AZ-4)
Straight-stream and stacked-tip nozzles for maximum throw distance — up to 85 m — remotely aimed onto the target from a safe control position.

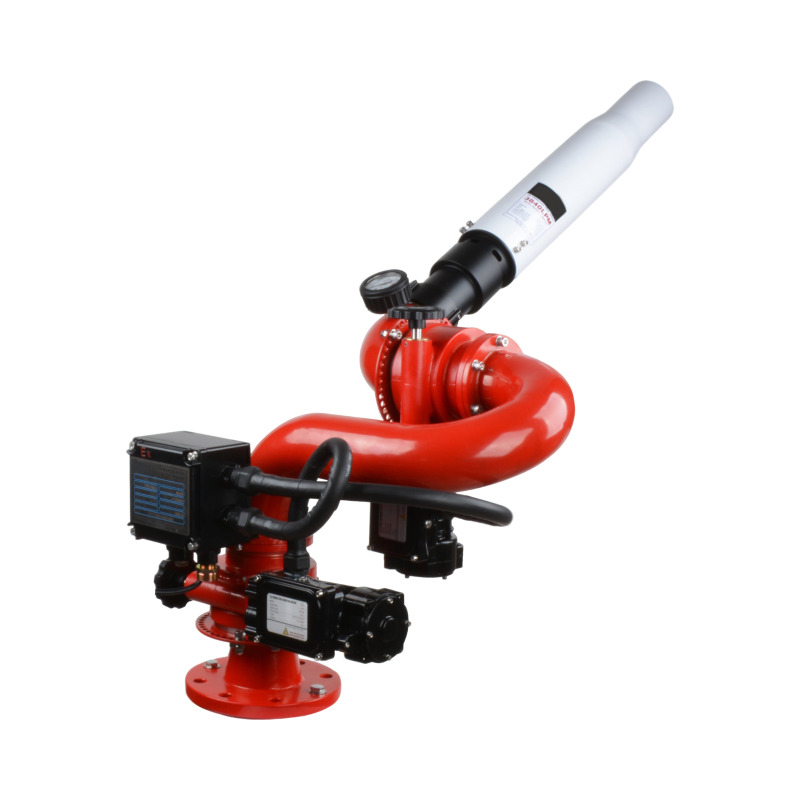

Foam-Water Nozzle (SP / SQ)
Air-aspirating foam-water nozzle for Class B fires — explosion-proof remote foam suppression for tank farms, tunnels and hazardous process zones.
Specifications — Water Monitor (XFS.FS / XFS.AZ)
| Model | Flow Rate | W. Pressure | Max Reach | Inlet |
|---|---|---|---|---|
| XFS1.FS020 | 1,200 LPM | 8 bar | 50 m | 2.5/3/4" |
| XFS1.FS030 | 1,800 LPM | 8 bar | 60 m | 2.5/3/4" |
| XFS1.FS040 | 2,400 LPM | 8 bar | 65 m | 2.5/3/4" |
| XFS2.AZ-1 (050) | 3,000 LPM | 8 bar | 70 m | 3/4" |
| XFS2.AZ-1 (060) | 3,600 LPM | 8 bar | 75 m | 3/4" |
| XFS2.AZ-1 (070) | 4,200 LPM | 8 bar | 80 m | 3/4" |
| XFS2.AZ-1 (080) | 4,800 LPM | 8 bar | 85 m | 3/4" |
FS = stream/fog nozzle · AZ = straight stream · AZ-4 = stacked tips. SS040 offers multi-flow (1,200-1,800-2,400 LPM) selection.
Specifications — Foam-Water Monitor (XFS.SP / XFS.SQ)
| Model | Flow Rate | W. Pressure | Water Reach | Foam Reach | Inlet |
|---|---|---|---|---|---|
| XFS1.SP024 / SQ024 | 1,440 LPM | 8 bar | 50 m | 42 m | 2.5/3/4" |
| XFS1.SP032 / SQ032 | 1,920 LPM | 8 bar | 55 m | 48 m | 2.5/3/4" |
| XFS1.SP040 / SQ040 | 2,400 LPM | 8 bar | 60 m | 55 m | 2.5/3/4" |
| XFS2.SP048 / SQ048 | 2,880 LPM | 8 bar | 65 m | 60 m | 3/4" |
| XFS2.SP064 / SQ064 | 3,840 LPM | 8 bar | 75 m | 70 m | 3/4" |
Explosion-proof foam-water remote monitors for tunnels, tank farms and Class B hazard zones. Requires upstream foam proportioner and concentrate supply.
Applications
Road & Rail Tunnels
Remote suppression in tunnels where personnel cannot safely approach a fire — aimed and discharged from the control room.
Tank Farms & LNG
Explosion-proof operation in petroleum and LNG terminals; foam-water XFS models for Class B hazard suppression.
Unmanned Facilities
Offshore platforms, unmanned substations and process units where remote or automatic suppression is required.
Frequently Asked Questions
What control options does the XFS monitor offer?
Three: wireless handheld transmitter, wired control box (panel), and manual hand wheel override. The monitor can be aimed and discharged from a safe remote location, or operated manually if power or controls fail.
What is the travelling angle of the XFS monitor?
Horizontal 340° and vertical −45° to +85°, giving wide-area coverage from a single fixed position.
Is the XFS fire monitor explosion-proof?
Yes — suitable for hazardous-area installations such as petroleum tank farms, LNG terminals, tunnels and offshore platforms. Power supply is AC 220V with a 24V motor actuator.
What flow rate and reach does the XFS series cover?
1,200–4,800 LPM with a reach of 50–85 m at 8 bar. Foam-water XFS models cover 1,440–3,840 LPM with a water reach up to 75 m and a foam reach up to 70 m.
