Manual Tiller Fire Monitor
TFS Series · Tiller control · Water & foam · Flow 1,200–4,800 LPM · Reach up to 85 m · SS304/316
TFS Series
Manual Tiller Fire Monitor
The CA-FIRE TFS series is a manual tiller-control fire monitor — a fire fighting water monitor aimed by a direct handle for fast, intuitive 1:1 aiming. Built on a stainless steel SS304/SS316 body, it is ideal for attended fire positions, emergency response and rapid traverse.
Available in straight stream, adjustable fog, stacked-tip and foam-water nozzle configurations, with stainless steel + brass or aluminium alloy nozzles, from 1,200 to 4,800 LPM.
Tiller Control
Water & Foam
SS304 / SS316
1,200–4,800
Flow Rate (LPM)
85 m
Max Reach
8 bar
W. Pressure
120°
Max Fog Angle
Key Features
Direct Tiller Control
Handle-operated horizontal and vertical aiming with immediate 1:1 response — fast traverse for attended positions and rapid emergency deployment.
SS304 / SS316 Body
Corrosion-resistant stainless steel body for long service life in outdoor, marine and industrial environments. SS+brass or aluminium nozzle.
Stream / Fog / Foam
Straight stream, adjustable fog (120°), stacked tips, or foam-water nozzle options to match the fire class and application.
Flexible Flange & Inlet
BS4504 / ANSI 150 / GB flange standards with 2.5" / 3" / 4" inlet — compatible with international and Chinese fire main standards.
Specifications — Water Monitor (Straight Stream / Fog)
| Model | Flow Rate | W. Pressure | Max Reach | Fog Angle | Inlet |
|---|---|---|---|---|---|
| TFS1.SF020 / AF020 | 1,200 LPM | 8 bar | 50 m | 120° | 2.5/3/4" |
| TFS1.SF030 / AF030 | 1,800 LPM | 8 bar | 60 m | 120° | 2.5/3/4" |
| TFS1.SF040 / AF040 | 2,400 LPM | 8 bar | 65 m | 120° | 2.5/3/4" |
| TFS2.AF050 | 3,000 LPM | 8 bar | 70 m | 120° | 3/4" |
| TFS2.AF060 | 3,600 LPM | 8 bar | 75 m | 120° | 3/4" |
| TFS2.AF070 | 4,200 LPM | 8 bar | 80 m | 120° | 3/4" |
| TFS2.AF080 | 4,800 LPM | 8 bar | 85 m | 120° | 3/4" |
SF = stainless steel + brass nozzle · AF = aluminium alloy nozzle. SS040/AS040 offer multi-flow (1,200-1,800-2,400 LPM). Straight-stream-only (.AZ-1) and stacked-tip (.AZ-4) variants available across the same flow range.
Nozzle & Configuration Options

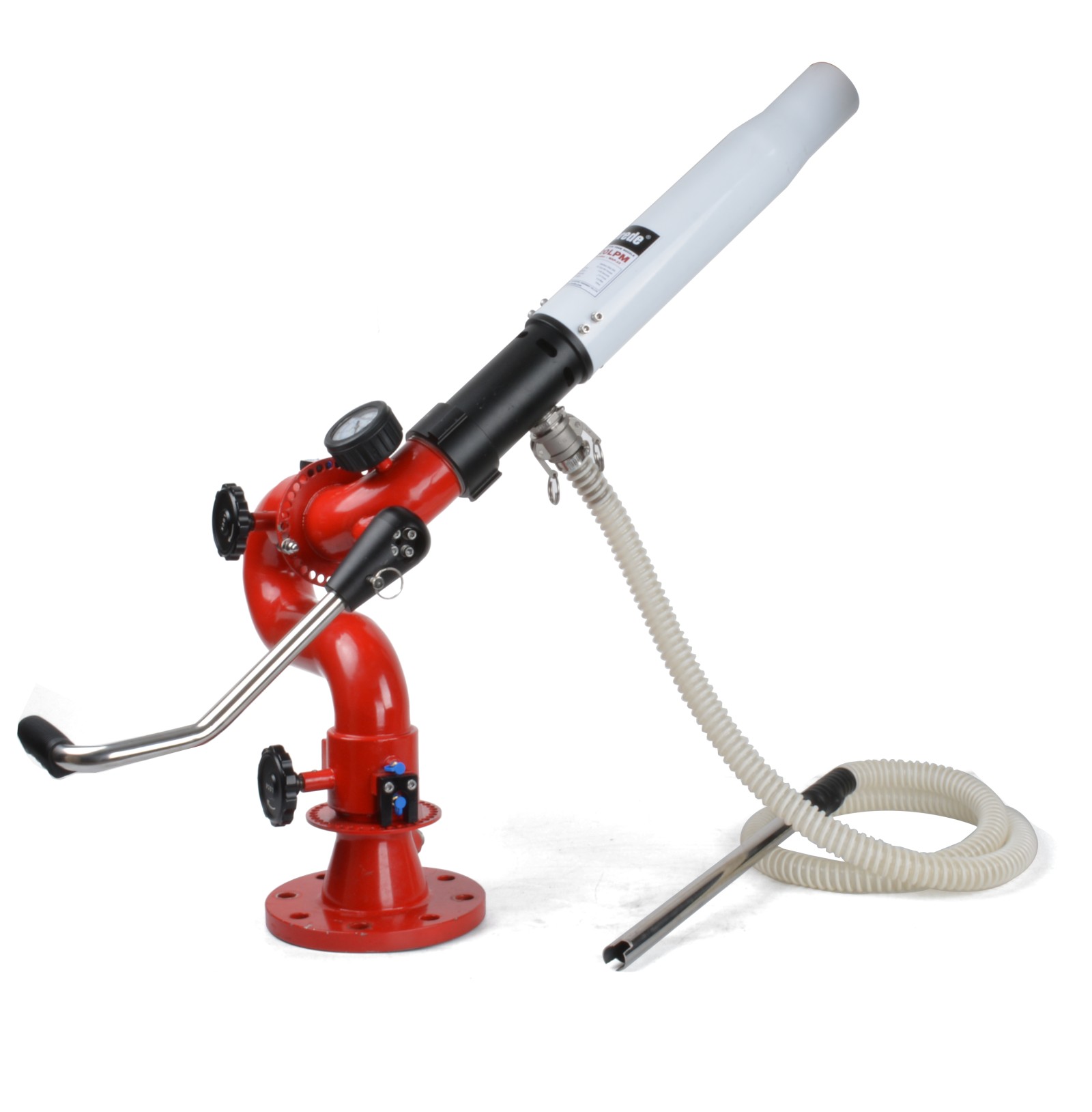

Aluminium Alloy Nozzle (AF / AS)
Lightweight aluminium alloy stream/fog nozzle — reduces overall weight for portable and mobile positions while keeping the same 1,200–4,800 LPM flow range.

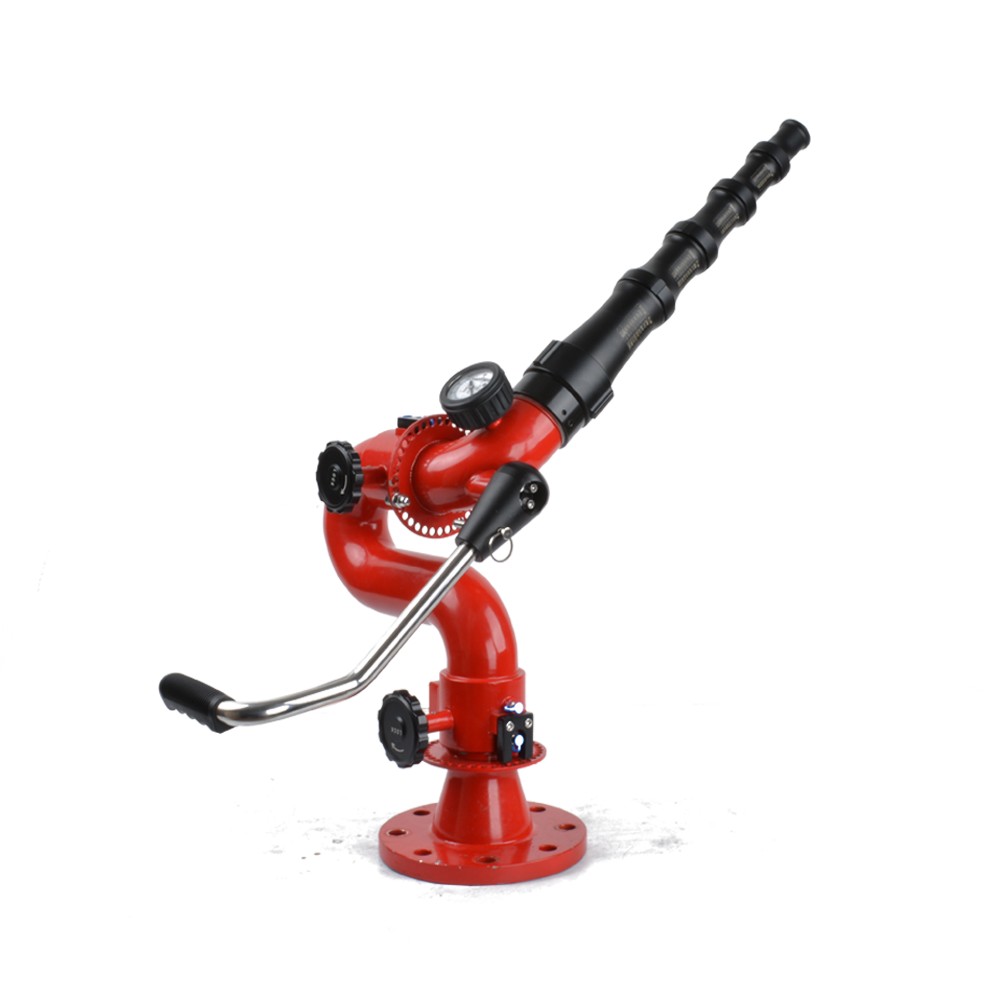

Stacked-Tip Straight Stream (AZ-4)
Stacked-tip straight-stream nozzle for maximum throw distance — concentrates the jet for the longest reach (up to 85 m) where penetration and range matter most.
Specifications — Foam-Water Monitor (TFS.SP / TFS.SQ)
| Model | Flow Rate | W. Pressure | Water Reach | Foam Reach | Inlet |
|---|---|---|---|---|---|
| TFS1.SP024 / SQ024 | 1,440 LPM | 8 bar | 50 m | 42 m | 2.5/3/4" |
| TFS1.SP032 / SQ032 | 1,920 LPM | 8 bar | 55 m | 48 m | 2.5/3/4" |
| TFS1.SP040 / SQ040 | 2,400 LPM | 8 bar | 60 m | 55 m | 2.5/3/4" |
| TFS2.SP048 / SQ048 | 2,880 LPM | 8 bar | 65 m | 60 m | 3/4" |
| TFS2.SP064 / SQ064 | 3,840 LPM | 8 bar | 75 m | 70 m | 3/4" |
Foam-water models for Class B (petroleum, solvent) fires. Nozzle: SS304/316 + aluminium alloy. Requires upstream foam proportioner and concentrate supply.
Applications
Industrial Plants
Attended fire positions on plant perimeters, warehouses and process areas where fast manual aiming matters.
Emergency Response
Fire brigade pump appliances and emergency staging where rapid, intuitive traverse is critical.
Tank Farms (Foam)
Foam-water TFS models protect petroleum tank farms, loading racks and solvent areas requiring Class B suppression.
Frequently Asked Questions
What is a manual tiller fire monitor?
A manual tiller fire monitor is a fire fighting water monitor aimed by a direct handle (tiller). The operator pushes the handle and the nozzle moves immediately, giving fast 1:1 aiming. The TFS series delivers 1,200–4,800 LPM with a reach of up to 85 m at 8 bar on a stainless steel SS304/SS316 body.
What flow rates does the TFS series cover?
TFS1 covers 1,200–2,400 LPM (reach 50–65 m) and TFS2 covers 3,000–4,800 LPM (reach 70–85 m), all at 8 bar working pressure.
Can the TFS monitor produce both straight stream and fog?
Yes. The .F models produce straight stream plus adjustable fog up to a 120° fog angle. The .Z models are straight stream only, .Z-4 uses stacked tips for maximum reach, and .SP/.SQ are foam-water models for Class B fires.
What is the difference between tiller and gear control?
Tiller (handle) control gives fast direct manual aiming, best for attended positions and rapid traverse. Gear control uses a self-locking mechanism that holds aim under reaction force, best for high-flow sustained discharge above 2,400 LPM. See the WFS gear control series.
What flange standards and inlet sizes are available?
BS4504, ANSI 150 and GB flange standards, with 2.5", 3" and 4" inlet sizes depending on flow rate. Specify both at time of order.
