Foam Bladder Tank — Horizontal, Vertical & Portable Systems
Complete PHYM / PHY Series · 0.5 m³ – 13.0 m³ · 4 – 360 L/s · DN80 – DN250 · ±0.3% Mixing Accuracy · No Electricity · NFPA 11 · GB / ISO 9001 / CE
Horizontal Tank
Vertical Tank
Portable System
3% / 6% Ratio
NFPA 11 Compliant
Factory Direct
50+ Countries
Foam Bladder Tank Systems
Complete Foam Bladder Tank Range — DN80 to DN250, 4 to 360 L/s
CA-FIRE manufactures a complete range of foam bladder tank systems for fixed and mobile foam fire suppression. All models operate on a fully hydraulic proportioning principle — no electricity required — delivering ±0.3% mixing accuracy at 3% or 6% ratio across flow rates from 4 L/s to 360 L/s and tank volumes from 0.5 m³ to 13.0 m³.
Compatible with AFFF, AR-AFFF and protein foam concentrates. Compliant with NFPA 11 (Low-, Medium- and High-Expansion Foam) and NFPA 16 (Closed-Head Foam-Water Sprinkler). GB / ISO 9001 / CE certified. Supplied to petrochemical, aviation, marine and industrial projects in 50+ countries.
All units are supplied as complete, ready-to-install systems — pressure vessel, internal rubber bladder, proportioner assembly, isolation valves, pressure gauges, safety relief valve, level indicator and full system documentation. See our technical download centre for datasheets and installation manuals.
3
Product Variants
13 m³
Max Tank Volume
360 L/s
Max Flow Rate
±0.3%
Mix Accuracy
PN12
Working Pressure
50+
Countries Shipped
Product Range
Most Popular
PHYM Series · Horizontal · Low Profile
Horizontal Foam Bladder Tank
Low-profile horizontal configuration for underground pump rooms, basements,
shipboard spaces and low-ceiling buildings. Widest flow range in the CA-FIRE line:
4–360 L/s. Saddle-mounted — no height restriction above tank crown.
0.5–13.0 m³
4–360 L/s
DN80–DN250
0.6–1.2 MPa
NFPA 11
View Product →
PHY Series · Vertical · Compact Footprint

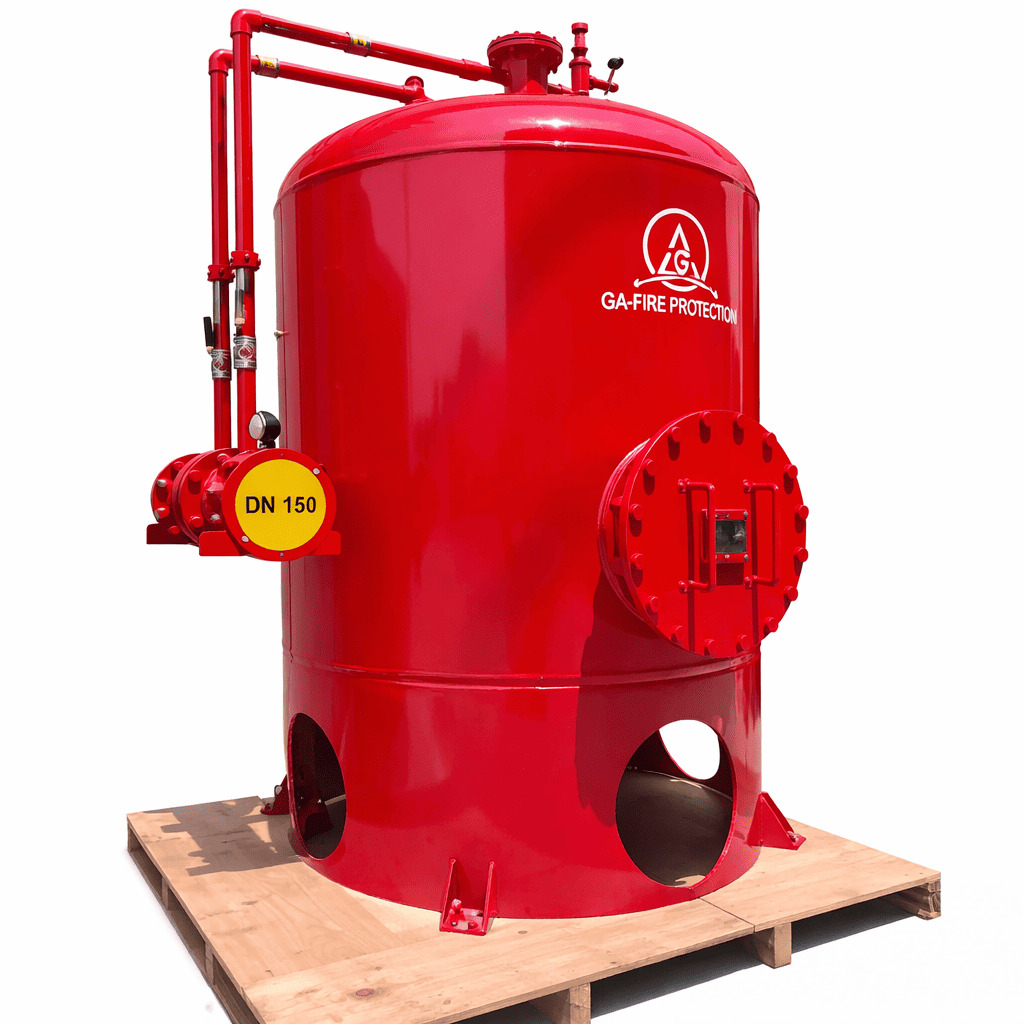

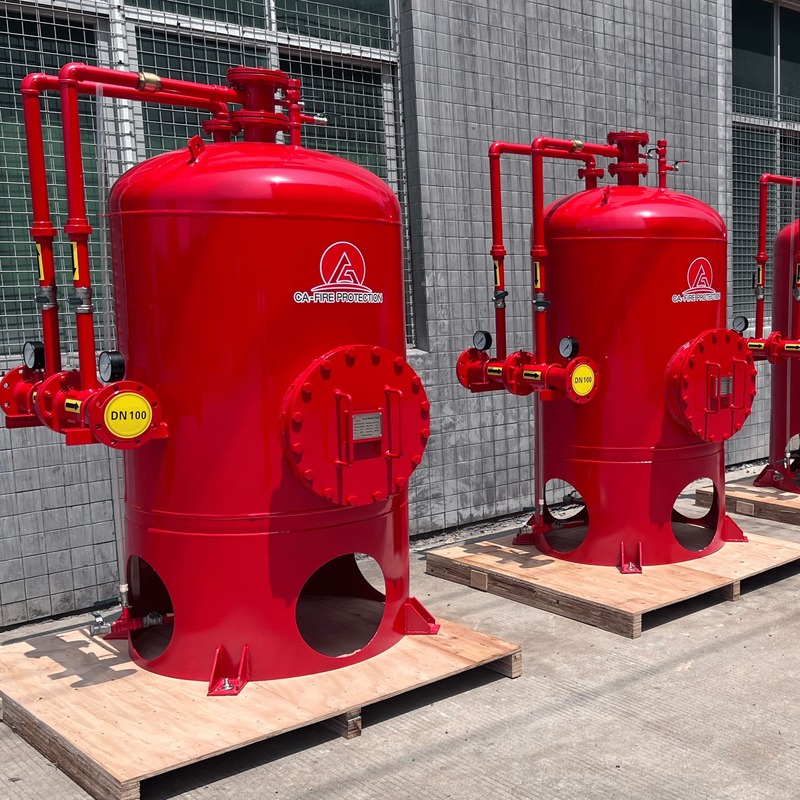

Vertical Foam Bladder Tank
Upright configuration with minimal floor footprint — preferred for above-ground fire pump
rooms where ceiling height is available but floor space is constrained. Six flow models:
PHY 8 to PHY 64. Uses less than half the floor area of equivalent horizontal tanks.
0.5–13.0 m³
8–120 L/s
DN80–DN250
0.6–1.2 MPa
NFPA 11
View Product →
Mobile
Mobile Unit · Wheeled / Skid

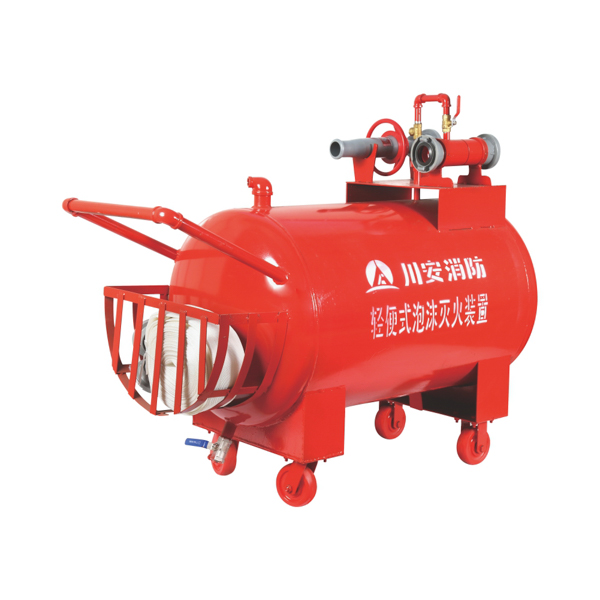

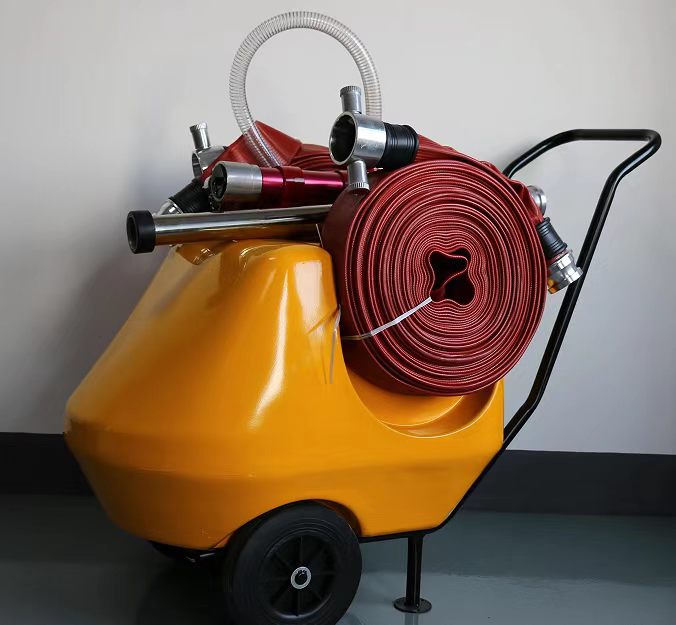

Portable Foam Fire Extinguishing System
Self-contained mobile foam suppression unit for first response, temporary protection
and supplementary coverage. Pre-connected proportioner, hose reel and foam nozzle
on a wheeled or skid-mounted frame. Deploys in minutes — no fixed pipework.
4–8 L/s
Self-Contained
3% / 6%
Wheeled / Skid
View Product →
Product Demo
Product Video
See How a Foam Bladder Tank System Works
This demonstration shows the PHYM/PHY series foam bladder tank in operation — from system pressurisation through proportioner activation to confirmed foam discharge.
- Hydraulic proportioning — zero electricity required
- Internal rubber bladder isolates foam from water supply
- ±0.3% mixing accuracy at 3% or 6% ratio
- Full factory hydrostatic test at 1.5 MPa before despatch
- Compatible with AFFF, AR-AFFF & protein foam concentrate
Which Foam Bladder Tank Do You Need? — Selection Guide
| Your Situation | Specify This Product | Key Reason |
|---|---|---|
| Underground pump room, basement, shipboard, or low-ceiling building |
Horizontal Foam Bladder Tank PHYM Series · 4–360 L/s View Horizontal Tank → |
Horizontal orientation minimises installed height. Saddle-mounted on foundation — no structural clearance above tank crown. Widest flow range: 4–360 L/s. |
| Above-ground fire pump room, plant room or equipment building with limited floor space |
Vertical Foam Bladder Tank PHY Series · 8–120 L/s View Vertical Tank → |
Vertical orientation trades floor area for height — in some sizes less than half the floor footprint of an equivalent horizontal tank. Preferred where floor space is shared with pumps, switchgear and other equipment. |
| No fixed pipework — first response, temporary protection or mobile supplementary suppression |
Portable Foam Fire Extinguishing System Mobile Unit · 4–8 L/s View Portable System → |
Self-contained — proportioner, foam tank, hose and nozzle on a single wheeled or skid frame. No civil works required. Deployable to any hazard location within minutes. |
| High flow rate system >120 L/s (large petrochemical tank farm or major aircraft hangar) |
Horizontal Foam Bladder Tank PHYM Series · up to 360 L/s View Horizontal Tank → |
The PHYM horizontal series reaches 360 L/s — more than 3× the maximum flow of the vertical range. Only option for peak demand on large tank farm and major hangar suppression systems. |
Full Specification Comparison — All Three Products
| Parameter | Horizontal Bladder Tank | Vertical Bladder Tank | Portable Foam System |
|---|---|---|---|
| Series / Model | PHYM Series | PHY Series (PHY 8–64) | Mobile Unit |
| Orientation | Horizontal — low profile | Vertical — upright | Mobile — wheeled / skid |
| Flow Range | 4–360 L/s | 8–120 L/s | 4–8 L/s |
| Tank Volume | 0.5–13.0 m³ | 0.5–13.0 m³ | Self-contained |
| Working Pressure | 0.6–1.2 MPa | 0.6–1.2 MPa | — |
| Test Pressure | 1.5 MPa | 1.5 MPa | — |
| Main Pipe Diameter | DN80–DN250 | DN80–DN250 | Built-in |
| Mixing Accuracy | ±0.3% | ±0.3% | ±0.3% |
| Mixing Ratio | 3% or 6% | 3% or 6% | 3% or 6% |
| Electricity Required | ✓ None | ✓ None | ✓ None |
| Foam Type | AFFF / AR-AFFF / Protein | AFFF / AR-AFFF / Protein | AFFF / AR-AFFF / Protein |
| Installation Type | Fixed — saddle-mounted | Fixed — base-mounted | Mobile — no civil works |
| Best For | Underground / low headroom / large tank farms | Limited floor space / above-ground plant rooms | First response / temporary / supplementary |
| Certifications | GB · ISO 9001 · CE | GB · ISO 9001 · CE | GB · ISO 9001 |
| Product Page | Horizontal Tank → | Vertical Tank → | Portable System → |
Factory Tested — Every Unit
Every foam bladder tank is hydrostatically tested to 1.5 MPa and proportioning accuracy verified to ±0.3% before despatch. Full test certification for authority submission.
Free Hydraulic Sizing
CA-FIRE engineers calculate tank volume, proportioner flow rating and pipe diameter for your system — confirming the correct configuration per NFPA 11 or GB discharge duration requirements.
Fully Customisable
0.5–13.0 m³ volumes, DN80–DN250 pipe diameters, 4–360 L/s flow, 3% or 6% ratio — all adjustable to match your hydraulic design. No forced over-specification to catalogue sizes.
ISO 9001 · 50+ Countries
ISO 9001 certified production, GB 5135 standard, CE marking. Over a decade supplying petrochemical, aviation, marine and industrial foam suppression globally.
Typical Applications for Foam Bladder Tank Systems
Petrochemical Tank Farms
PHYM series up to 360 L/s for large crude oil and refined product storage tank fixed foam systems per NFPA 11.
Aircraft Hangars
High-flow horizontal bladder tanks for foam-water deluge and closed-head foam-water sprinkler systems per NFPA 409.
Industrial Plants & Warehouses
Vertical PHY series preferred where floor space is constrained. Covers paint shops, chemical stores, flammable liquid warehouses.
Marine & Offshore
Compact horizontal configuration for engine rooms, pump rooms and cargo deck foam systems on tankers, FPSOs and offshore platforms.
Power Plants & Substations
Transformer protection and turbine hall foam suppression with fixed vertical or horizontal bladder tank systems.
First Response & Temporary
Portable wheeled foam unit for industrial fire brigades, construction sites and locations awaiting fixed system installation.
Related CA-FIRE Products for Foam Suppression Systems
| Product | Function in Foam System | Link |
|---|---|---|
| Deluge Valve | Controls foam-water release to deluge nozzle arrays. Paired with foam bladder tank proportioner on deluge foam systems. | View Deluge Valves → |
| Fire Monitor | Oscillating and fixed foam/water monitors for petrochemical tank farm and marine deck protection. Works with portable foam units. | View Fire Monitors → |
| Gate Valve (OS&Y / NRS) | Isolation valves on foam system supply and discharge mains. Full bore, PN16, flanged or grooved end. | View Gate Valves → |
| Alarm Check Valve | Wet-pipe system alarm valve integrated upstream of foam water sprinkler zones where system design requires waterflow alarm. | View Alarm Check Valves → |
Applicable Standards & Design References
| Standard | Scope | Authority |
|---|---|---|
| NFPA 11 | Standard for Low-, Medium-, and High-Expansion Foam. Primary design reference for fixed foam bladder tank systems. | NFPA (USA / International) |
| NFPA 16 | Standard for the Installation of Foam-Water Sprinkler and Foam-Water Spray Systems. | NFPA (USA / International) |
| GB 50151 | Code for Design of Foam Extinguishing Systems (China national standard). Governs foam system design in Chinese projects. | Ministry of Public Security, China |
| GB 5135 | Automatic sprinkler system components (includes foam bladder tank component standards). | SAMR / SAC, China |
| ISO 7076 / EN 13565 | International / European standards for fixed foam firefighting systems — equipment and design. | ISO / CEN |
All CA-FIRE foam bladder tanks are designed and tested per the above standards. Refer to our download centre for product datasheets, installation manuals and test certificates.
Request a Quote or Hydraulic Sizing Support
Foam Bladder Tank System · 0.5–13.0 m³ · 4–360 L/s · NFPA 11 Compliant · Factory Direct · 50+ Countries.
Contact CA-FIRE for project pricing, submittals, technical drawings or OEM enquiries.
📧 Send an Enquiry
Contact CA-FIRE for project pricing, submittals, technical drawings or OEM enquiries.
