Gear Control Fire Monitor
WFS Series · Self-locking gear · Water & foam · Flow 1,200–4,800 LPM · Reach up to 85 m · SS304/316
WFS Series
Gear Control Fire Monitor
The CA-FIRE WFS series is a gear (hand wheel) control fire monitor — a fire fighting ground monitor with a self-locking worm gear mechanism. The gear holds the nozzle precisely on target under full reaction force, without the operator maintaining pressure, making it the correct choice for high-flow sustained discharge and precision fixed-target aim.
Built on a stainless steel SS304/SS316 body, available in straight stream, fog, stacked-tip and foam-water configurations, from 1,200 to 4,800 LPM.
Self-Locking Gear
Water & Foam
SS304 / SS316
1,200–4,800
Flow Rate (LPM)
85 m
Max Reach
8 bar
W. Pressure
2-Axis
Self-Locking
Key Features
Self-Locking Worm Gear
Mechanically irreversible gear holds the aimed position on both axes under full reaction force — the nozzle cannot drift, even at 4,800 LPM, with no operator pressure required.
No Operator Fatigue
Hand wheel released, aim maintained. The operator does not need to hold the monitor against the reaction force for the full discharge duration — ideal for sustained operation.
Precise Incremental Aim
Fine hand-wheel adjustment without overshoot — accurately directs the jet onto a fixed target such as a tank, vessel or process unit.
SS304 / SS316 Body
Corrosion-resistant stainless steel body with BS4504 / ANSI 150 / GB flange and 2.5" / 3" / 4" inlet, for long service life in outdoor and industrial environments.
Nozzle & Configuration Options

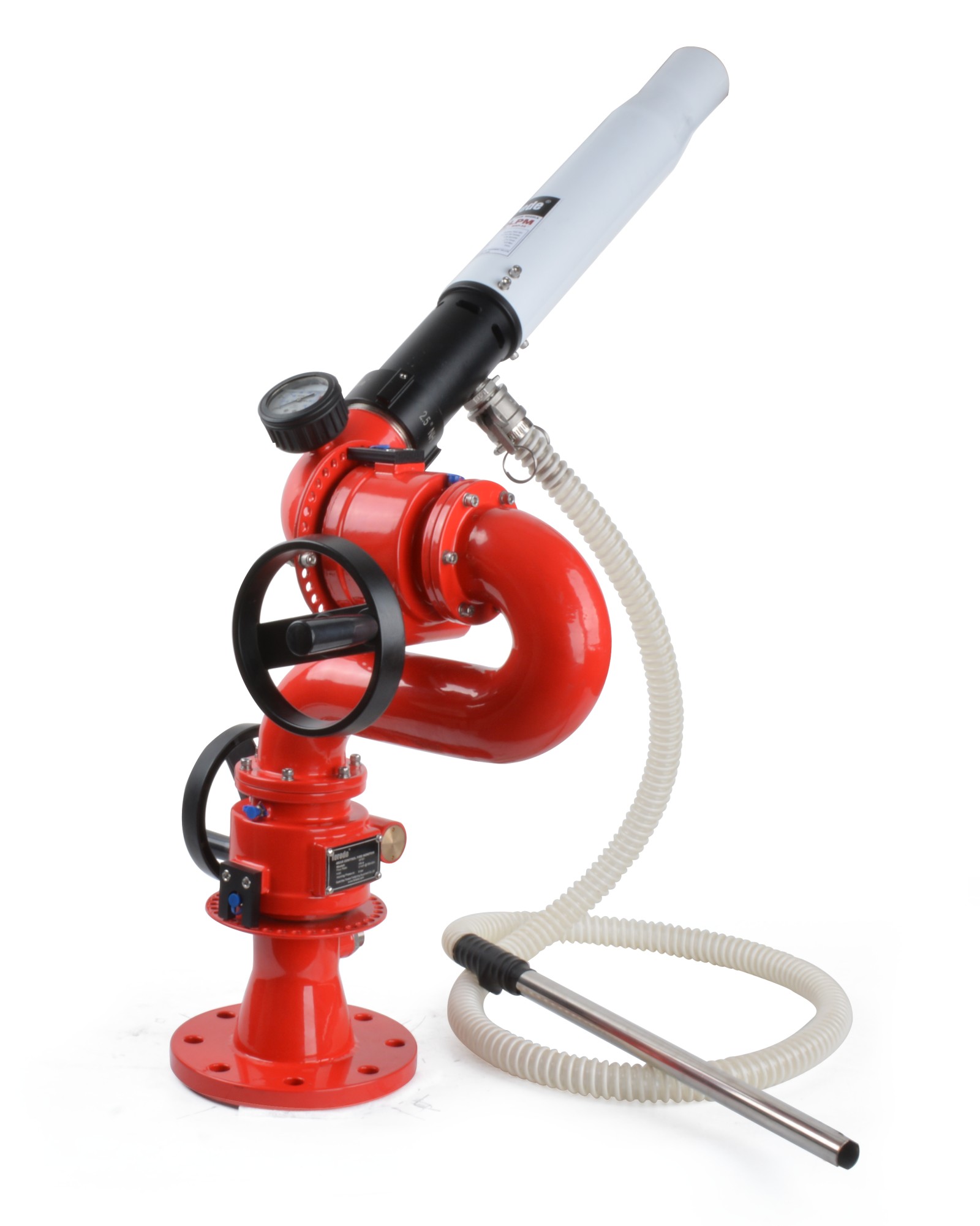

Aluminium Alloy Nozzle (AF / AS)
Lightweight aluminium alloy stream/fog nozzle with the self-locking gear — reduces weight while keeping the full 1,200–4,800 LPM flow range and 120° fog angle.

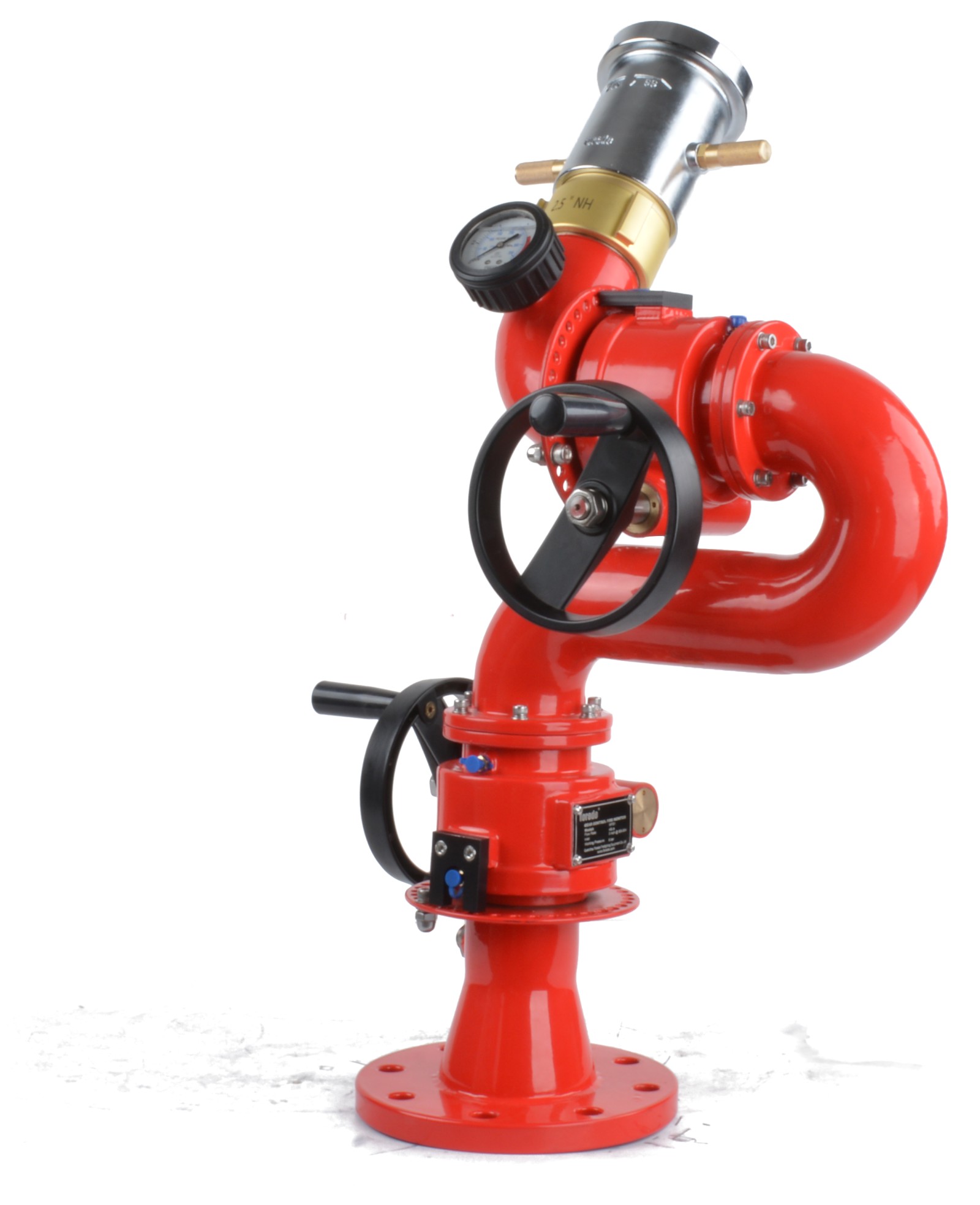

Straight Stream / Stacked-Tip (AZ / AZ-4)
Straight-stream and stacked-tip nozzles for maximum throw distance — up to 85 m — where the self-locking gear holds the long-range jet precisely on a fixed target.

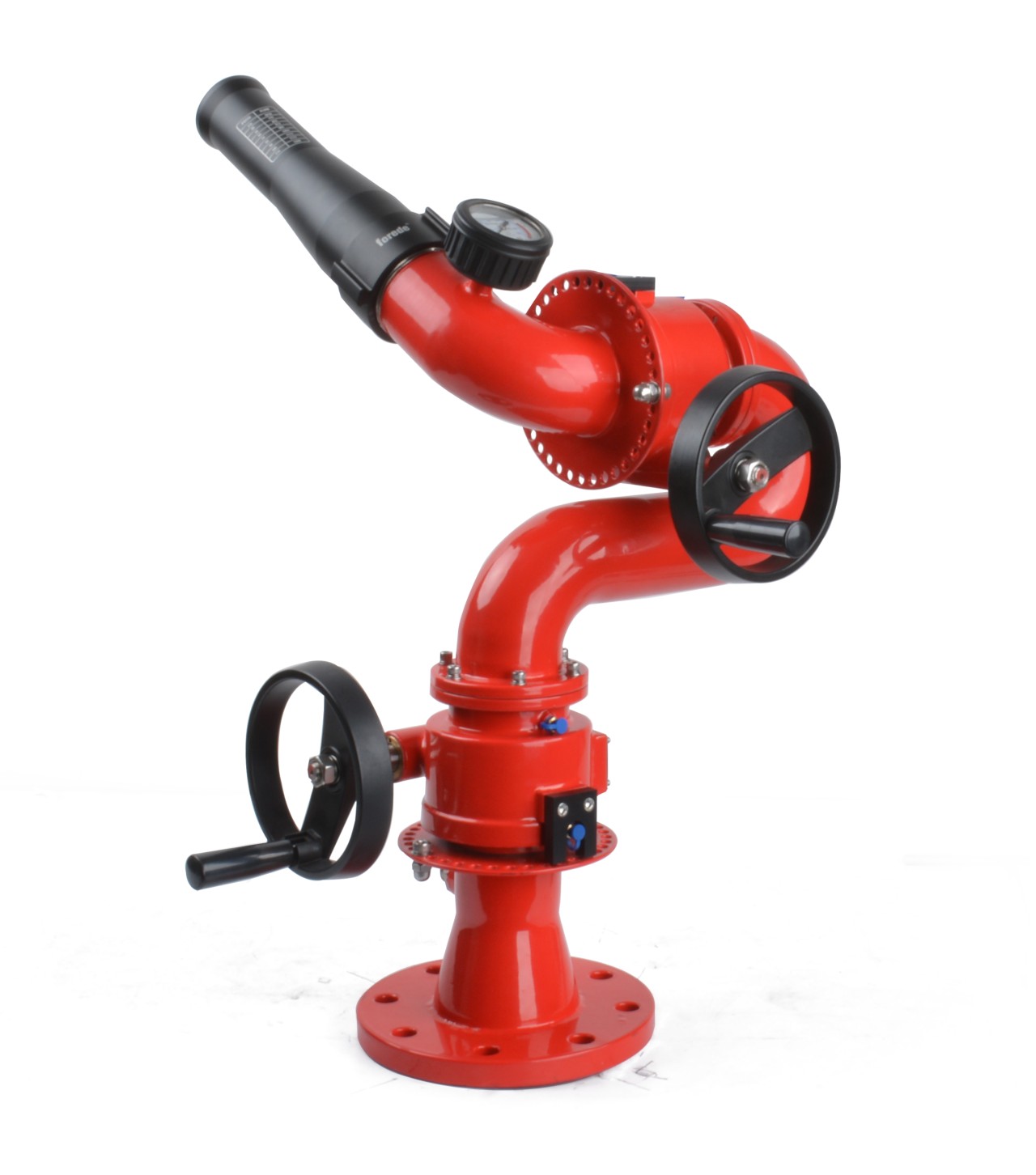

Foam-Water Nozzle (SP)
Air-aspirating foam-water nozzle for Class B fires — petroleum, solvents and fuels — combining the self-locking gear with foam suppression for tank farms and loading racks.

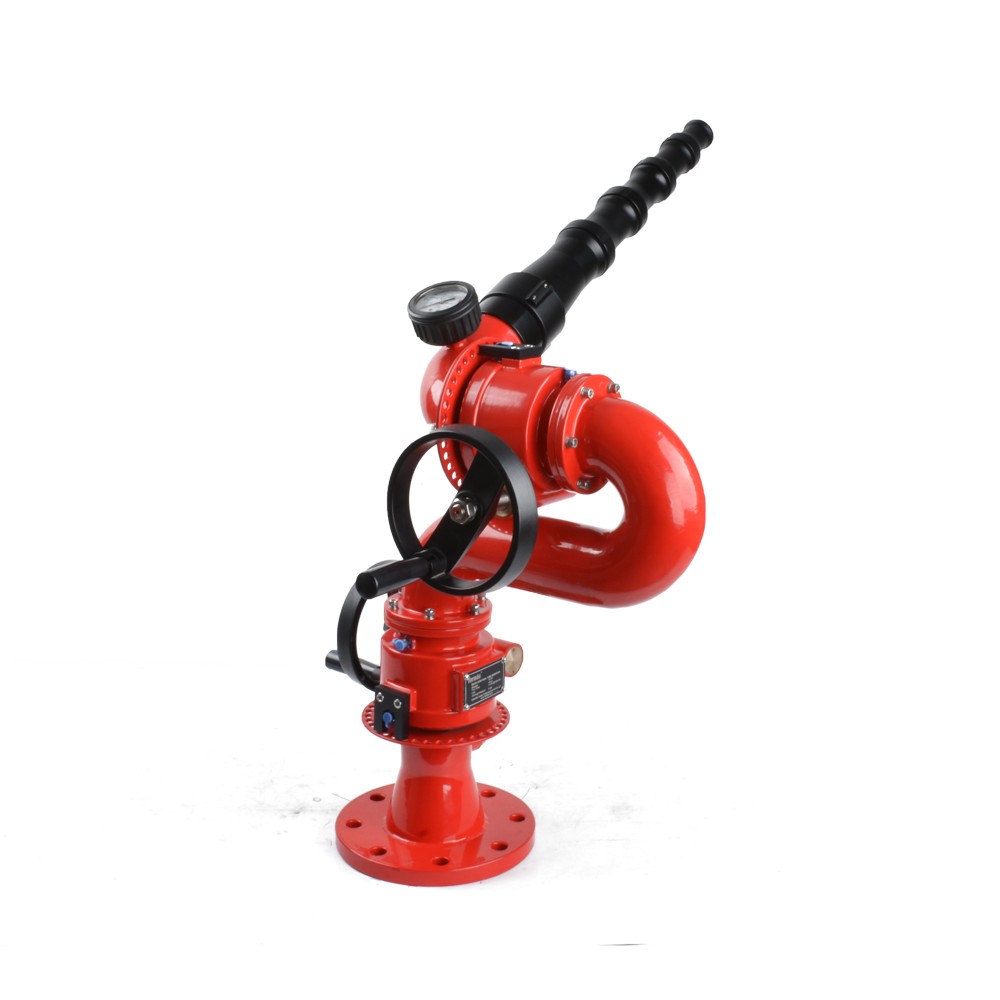

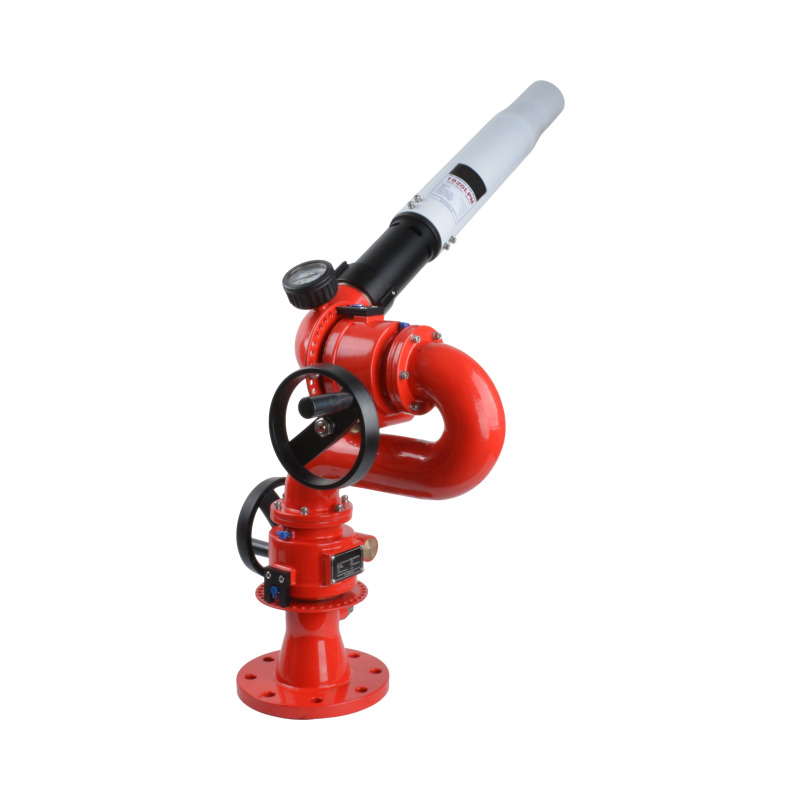

Foam-Water Nozzle (SQ)
Alternative foam-water configuration delivering the same 1,440–3,840 LPM flow with water reach to 75 m and foam reach to 70 m, for Class B hazard protection.
Specifications — Water Monitor (Straight Stream / Fog)
| Model | Flow Rate | W. Pressure | Max Reach | Fog Angle | Inlet |
|---|---|---|---|---|---|
| WFS1.SF020 / AF020 | 1,200 LPM | 8 bar | 50 m | 120° | 2.5/3/4" |
| WFS1.SF030 / AF030 | 1,800 LPM | 8 bar | 60 m | 120° | 2.5/3/4" |
| WFS1.SF040 / AF040 | 2,400 LPM | 8 bar | 65 m | 120° | 2.5/3/4" |
| WFS2.AF050 | 3,000 LPM | 8 bar | 70 m | 120° | 3/4" |
| WFS2.AF060 | 3,600 LPM | 8 bar | 75 m | 120° | 3/4" |
| WFS2.AF070 | 4,200 LPM | 8 bar | 80 m | 120° | 3/4" |
| WFS2.AF080 | 4,800 LPM | 8 bar | 85 m | 120° | 3/4" |
SF = stainless steel + brass nozzle · AF = aluminium alloy nozzle. SS040/AS040 offer multi-flow (1,200-1,800-2,400 LPM). Straight-stream-only (.AZ-1) and stacked-tip (.AZ-4) variants available across the same flow range.
Specifications — Foam-Water Monitor (WFS.SP / WFS.SQ)
| Model | Flow Rate | W. Pressure | Water Reach | Foam Reach | Inlet |
|---|---|---|---|---|---|
| WFS1.SP024 / SQ024 | 1,440 LPM | 8 bar | 50 m | 42 m | 2.5/3/4" |
| WFS1.SP032 / SQ032 | 1,920 LPM | 8 bar | 55 m | 48 m | 2.5/3/4" |
| WFS1.SP040 / SQ040 | 2,400 LPM | 8 bar | 60 m | 55 m | 2.5/3/4" |
| WFS2.SP048 / SQ048 | 2,880 LPM | 8 bar | 65 m | 60 m | 3/4" |
| WFS2.SP064 / SQ064 | 3,840 LPM | 8 bar | 75 m | 70 m | 3/4" |
Foam-water gear monitors for Class B (petroleum, solvent) fires. Combines self-locking gear with air-aspirating foam nozzle. Requires upstream foam proportioner and concentrate supply.
Applications
Petrochemical Units
High-flow sustained discharge on process units where the nozzle must hold a fixed aim under heavy reaction force for long periods.
Tank Farms (Foam)
Foam-water WFS models protect oil storage tank farms and loading racks requiring Class B suppression with self-locking aim.
Power & Transformer
Precise fixed-target aim onto transformers and high-value equipment, holding position without operator effort during a sustained event.
Frequently Asked Questions
Why does a gear control fire monitor self-lock in position?
The WFS gear mechanism is mechanically irreversible — the hand wheel can drive the nozzle, but the nozzle reaction force cannot drive the gear backwards. The monitor holds its exact aimed position on both horizontal and vertical axes under full reaction force, with no operator pressure required on the hand wheel.
When should I choose gear control over tiller control?
Choose WFS gear control for high-flow sustained discharge above 2,400 LPM and precise fixed-target aim. Choose TFS tiller control for fast manual traverse at attended lower-flow positions.
What flow rates and reach does the WFS series cover?
1,200–4,800 LPM with a maximum reach of 50–85 m at 8 bar. Foam-water WFS models cover 1,440–3,840 LPM with a water reach up to 75 m and a foam reach up to 70 m.
Is the WFS available in foam-water configuration?
Yes. The WFS.SP and WFS.SQ models are foam-water monitors for Class B fires such as petroleum and solvents, combining the self-locking gear with an air-aspirating foam nozzle. Flow rates 1,440–3,840 LPM.
What body material and flange standards are used?
Stainless steel SS304 or SS316 body, with a stainless steel + brass or aluminium alloy nozzle. Flange standards are BS4504, ANSI 150 and GB, with 2.5", 3" and 4" inlet sizes depending on flow rate.
