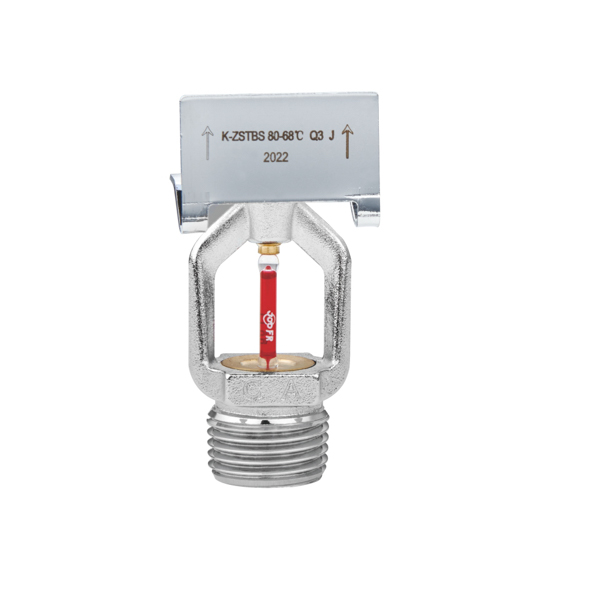

K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler Head: Compact, Reliable Protection for Tight Residential & Commercial Spaces

Download Catalog

K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler Head– The Ideal Fire Sprinkler Sidewall for Narrow Environments

When designing fire protection systems for spaces where overhead pendent sprinklers feel intrusive or unfeasible—think narrow apartment hallways, small office cubicles, or boutique hotel guest rooms—a sidewall fire sprinkler emerges as the perfect solution. The K-ZSTBS 80-68°C Q3 J sidewall sprinkler head, engineered by CA-fire Protection Co., Ltd., is a high-performance fire sprinkler sidewall unit built to balance space efficiency, aesthetic integration, and rapid fire suppression. As a horizontal sidewall sprinkler tailored for residential and light commercial use, it eliminates the need for overhead piping while delivering targeted water coverage that rivals traditional sprinklers. Whether you’re outfitting a new apartment complex with residential sidewall sprinkler units or retrofitting a small retail space with a reliable sidewall sprinkler, the K-ZSTBS 80-68°C Q3 J stands out for its durability, compliance, and ease of installation. This comprehensive guide dives deep into every detail of this sidewall fire sprinkler—from technical specifications and core features to real-world applications, maintenance best practices, and purchasing options—ensuring you have all the insights to protect tight spaces with a trusted sidewall sprinkler head.

What Makes a Sidewall Fire Sprinkler Essential for Modern Spaces?

Defining the Sidewall Fire Sprinkler (and Why It Matters)

A sidewall fire sprinkler (often called a fire sprinkler sidewall) is a specialized sprinkler head designed for horizontal mounting on walls or wall-ceiling junctions, rather than the overhead pendent or upright installations common in larger spaces. Unlike traditional sprinklers, a sidewall sprinkler head distributes water in a directional pattern—typically a combination of horizontal spray (to cover adjacent walls) and downward flow (to protect floor areas)—making it ideal for narrow, low-ceiling, or aesthetically sensitive environments. For example, a horizontal sidewall sprinkler installed in a hotel corridor can blend into the wall trim, avoiding the cluttered look of overhead pipes, while still providing full coverage of the passageway.
The K-ZSTBS 80-68°C Q3 J takes this functionality further: as a residential sidewall sprinkler, it features a low-profile chrome-plated brass frame that fits flush with most wall surfaces, making it nearly unnoticeable in homes or apartments. For commercial spaces like small offices or retail boutiques, it functions as a reliable sidewall sprinkler that doesn’t disrupt product displays or workspace layouts. In short, sidewall fire sprinkler units fill a critical gap in fire protection, ensuring even the most space-constrained areas aren’t left vulnerable to fire hazards.

How the K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler Compares to Competitors

When evaluating sidewall fire sprinkler options, many facility managers and homeowners compare models like the tyco sidewall sprinkler or viking sidewall sprinkler—but the K-ZSTBS 80-68°C Q3 J offers unique advantages for residential and light commercial use:
  • Unlike a concealed sidewall sprinkler (which requires additional ceiling housing), this horizontal sidewall sprinkler mounts directly to walls, reducing installation time and cost.
  • It matches the coverage area of a tyco residential sidewall (12.96 m² per unit) but operates at lower water pressure (0.1-1.0 MPa), making it compatible with standard household plumbing.
  • Its chrome-plated brass frame is more corrosion-resistant than the plastic components in some victaulic sidewall sprinkler models, ensuring longer service life in humid environments (e.g., bathrooms or basements).
  • Unlike a dry sidewall sprinkler (designed for unheated spaces), the K-ZSTBS 80-68°C Q3 J is optimized for indoor, temperature-controlled areas—perfect for homes, offices, and hotels.
In short, this sidewall fire sprinkler balances performance, affordability, and ease of use, making it a top choice for spaces where competitors’ models may be overengineered or incompatible.

Technical Specifications of the K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler

Detailed Parameters of the K-ZSTBS 80-68°C Q3 J Sidewall Sprinkler Head

The K-ZSTBS 80-68°C Q3 J sidewall fire sprinkler is manufactured to meet strict international standards (including NFPA 13 and ISO 9001), ensuring consistent performance and compliance. Based on CA-fire’s product catalog, its technical specifications are:
Parameter Details
Model Number K-ZSTBS 80-68°C Q3 J
Sprinkler Type Horizontal Sidewall Sprinkler
Core Keyword Alignment sidewall fire sprinkler, fire sprinkler sidewall
K-Factor K=80 (5.6 gpm/psi¹ᐟ²)
Activation Temperature 68°C (155°F)
Heat-Sensing Element 5mm Red Glass Bulb
Connection Thread R1/2″ (compatible with 1/2″ NPT piping)
Installation Orientation Horizontal (Wall/Ceiling Junction)
Working Pressure Range 0.1–1.0 MPa (14.5–145 psi)
Maximum Ambient Temperature 38°C (100°F)
Minimum Operating Temperature 4°C (39°F)
Protected Coverage Area 3.6m × 3.6m (12.96 m²)
Spray Pattern Horizontal (180°) + Downward (90°)
Frame Material & Finish Chrome-Plated Brass
Deflector Material Stainless Steel
Response Time Index (RTI) 80–360 (m·s)
Certifications NFPA 13 Compliant, ISO 9001:2015 Certified
Service Life 10–15 Years (Indoor Environments)

Key Features That Make This Sidewall Fire Sprinkler Stand Out

  1. Space-Saving Horizontal Design: As a horizontal sidewall sprinkler, it mounts to walls or ceiling junctions, eliminating the need for overhead pipes—ideal for narrow hallways, small bathrooms, or office cubicles where pendent sprinklers are impractical.
  2. Rapid, Reliable Activation: The 5mm red glass bulb (calibrated to 68°C) activates faster than many tyco sidewall sprinkler models, ensuring flames are suppressed before they spread in tight spaces.
  3. Wide Coverage for a Compact Unit: Despite its small size, this sidewall sprinkler head covers up to 12.96 m²—matching the coverage of larger overhead sprinklers and reducing the number of units needed for a space.
  4. Residential Water Pressure Compatibility: Unlike industrial sidewall fire sprinkler units that require high-pressure pumps, it operates on standard household water pressure (0.1–1.0 MPa), simplifying retrofits in existing homes.
  5. Durable, Corrosion-Resistant Construction: The chrome-plated brass frame and stainless steel deflector resist rust and wear, outperforming plastic components in victaulic residential sidewall models—especially in humid environments like bathrooms or basements.
  6. Aesthetic Integration: The low-profile frame blends into wall trim or ceiling junctions, making it a more discreet alternative to a concealed sidewall sprinkler (which requires additional housing and installation labor).

Applications of the K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler

Ideal Environments for This Sidewall Fire Sprinkler

The K-ZSTBS 80-68°C Q3 J sidewall fire sprinkler is engineered for residential and light commercial spaces where overhead sprinklers are unfeasible or aesthetically disruptive. Key applications include:

  1. Residential Buildings:

    • Apartments & Condominiums: Install as a residential sidewall sprinkler in hallways, kitchens, bathrooms, and bedrooms—spaces where overhead pipes would reduce ceiling height or disrupt decor.
    • Townhouses & Single-Family Homes: Use as a fire sprinkler sidewall in narrow stairwells, home offices, or finished basements.

  2. Hospitality Venues:

    • Boutique Hotels & Motels: Mount as a reliable sidewall sprinkler in guest rooms, corridors, and small dining areas—avoiding the cluttered look of overhead sprinklers that could detract from interior design.
    • Bed-and-Breakfasts: Install in small common areas or guest suites, where space is limited and aesthetics matter.

  3. Commercial Spaces:

    • Small Offices & Coworking Spaces: Use as a horizontal sidewall sprinkler in cubicle areas, meeting rooms, or narrow hallways—preserving workspace layout and avoiding overhead pipe clutter.
    • Retail Boutiques & Convenience Stores: Mount as a sidewall sprinkler head near product displays or checkout counters, where overhead sprinklers could block customer flow or damage merchandise.

  4. Educational & Institutional Facilities:

    • Daycares & Preschools: Install as a residential sidewall sprinkler in classrooms or narrow corridors—where overhead sprinklers could pose a safety hazard for young children.
    • Small Libraries & Community Centers: Use in reading nooks or narrow storage areas, where space is limited and aesthetic integration is desired.

How This Sidewall Fire Sprinkler Integrates with Other Systems

To create a comprehensive fire protection network, the K-ZSTBS 80-68°C Q3 J sidewall fire sprinkler pairs seamlessly with:
  • Fire Alarm Systems: Triggers audible/visual alarms when the sprinkler activates, alerting occupants and emergency services (critical for tight spaces where fires can spread quickly).
  • Wet Pipe Systems: The most common residential/commercial fire protection setup, where pressurized water is ready to flow the moment the sidewall sprinkler head activates.
  • Portable Fire Extinguishers: For small, early-stage fires, extinguishers can complement the sidewall fire sprinkler to provide layered protection (e.g., in kitchen areas where grease fires may occur).
  • Smoke Detectors: Work in tandem with the fire sprinkler sidewall to provide early warning—smoke detectors alert occupants, while the sprinkler suppresses flames.
For example, in an apartment kitchen, a sidewall fire sprinkler can be paired with a smoke detector and a kitchen fire extinguisher to create a multi-layered safety system that addresses both early warning and rapid suppression.

Installing the K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler

Step-by-Step Installation Guidelines for This Sidewall Sprinkler Head

Proper installation is critical to ensuring the K-ZSTBS 80-68°C Q3 J sidewall fire sprinkler functions correctly. Follow these guidelines (or hire a licensed fire protection contractor):

  1. Select the Right Mounting Location:

    • Install at a wall-ceiling junction (100–250mm from the ceiling, 100–150mm from the wall) to ensure the horizontal sidewall sprinkler’s spray pattern covers the intended area.
    • Avoid mounting near obstructions (e.g., shelves, decor) that could block water flow—maintain a 1.2m clear zone around the sidewall sprinkler head.

  2. Verify Piping Compatibility:

    • Ensure the system uses R1/2″ (or 1/2″ NPT) piping—compatible with the sprinkler’s connection thread.
    • Flush pipes to remove debris before installation, as clogs can prevent the sidewall fire sprinkler from activating properly.

  3. Secure the Sprinkler:

    • Hand-tighten the sprinkler to the pipe, then use a wrench to tighten 1/4 turn (do not over-tighten, as this can damage the frame or seal).
    • Ensure the sprinkler is oriented horizontally (per the sidewall fire sprinkler design) to maintain the correct spray pattern.

  4. Test the System:

    • Conduct a pressure test (0.1–1.0 MPa) to verify no leaks exist.
    • Perform a flow test to confirm the fire sprinkler sidewall delivers the correct water volume and coverage pattern.

Common Installation Mistakes to Avoid

  • Incorrect Mounting Orientation: Mounting the horizontal sidewall sprinkler vertically will disrupt the spray pattern, reducing coverage.
  • Over-Tightening: This can damage the sprinkler’s seal or frame, leading to leaks or failure to activate.
  • Obstructing the Deflector: Placing decor, shelves, or equipment near the sidewall sprinkler head can block water flow, rendering the unit ineffective.

Maintaining the K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler

Routine Maintenance for Long-Term Reliability

To ensure your sidewall fire sprinkler operates correctly when needed, follow these maintenance steps:

  1. Quarterly Visual Inspections:

    • Check the sidewall sprinkler head for damage (e.g., cracked glass bulb, bent deflector) or corrosion.
    • Ensure no obstructions (e.g., dust, decor, furniture) block the deflector.
    • Verify the sprinkler is still oriented horizontally (per the horizontal sidewall sprinkler design).

  2. Annual Professional Testing:

    • Hire a licensed fire protection technician to test the system’s pressure and flow rate.
    • Verify the sidewall fire sprinkler activates at 68°C (using a heat test kit) to ensure the glass bulb functions correctly.

  3. Replacement Guidelines:

    • Replace the sidewall fire sprinkler every 10–15 years (or sooner if damage is detected).
    • Immediately replace any unit with a cracked glass bulb, corroded frame, or damaged deflector.

How Maintenance Compares to Competitors

  • Unlike a concealed sidewall sprinkler (which requires removing housing for inspections), this sidewall fire sprinkler is easily accessible for visual checks.
  • Its chrome-plated brass frame requires less maintenance than the plastic components in victaulic sidewall sprinkler models, which can degrade over time in humid environments.
  • The 5mm glass bulb is easier to inspect than the sealed elements in some tyco dry sidewall models, reducing the risk of undetected failures.

Purchasing the K-ZSTBS 80-68°C Q3 J Sidewall Fire Sprinkler

Why Choose CA-fire for Your Sidewall Fire Sprinkler Needs

When purchasing a sidewall fire sprinkler, partnering with a reputable manufacturer is critical to ensuring quality and compliance. CA-fire Protection Co., Ltd. offers key advantages:
  • Certified Quality: Every K-ZSTBS 80-68°C Q3 J sidewall sprinkler head meets NFPA 13 and ISO 9001 standards—unlike uncertified alternatives that may fail in a fire.
  • Technical Support: A team of fire protection experts provides guidance on installation, spacing, and system compatibility—critical for ensuring your residential sidewall sprinkler setup meets local codes.
  • Flexible Ordering: Offers both retail (small quantities for home retrofits) and wholesale (bulk orders for contractors or developers) options.
  • Warranty Coverage: A 1-year manufacturer’s warranty covers defects in materials and workmanship—providing peace of mind for your investment.

Sidewall Sprinkler Price Factors & Getting a Quote

The sidewall sprinkler price for the K-ZSTBS 80-68°C Q3 J varies based on:
  1. Order Quantity: Bulk orders (50+ units) receive 15–20% discounts, making it cost-effective for multi-unit residential or commercial projects.
  2. Delivery Location: Domestic (China) shipping is low-cost; international shipping rates vary by region (contact CA-fire for a custom quote).
  3. Customization: Special finishes (e.g., matte black for design matching) incur minor premiums (typically 5–10% per unit).
To get a personalized quote for this sidewall fire sprinkler, contact CA-fire with:
  • The number of units needed.
  • Your delivery location (city, country, postal code).
  • Any customization requirements (e.g., special finishes).
The sales team will respond within 24 hours with a transparent quote that includes product costs, shipping fees, and applicable taxes.

Authorized Channels to Purchase

To ensure you receive genuine, certified sidewall fire sprinkler units:
  1. Direct from CA-fire: Contact the sales team via email, phone, WhatsApp, or WeChat (see contact details below).
  2. Authorized Distributors: CA-fire has a global network of distributors specializing in fire protection products—verify a distributor’s authorization before purchasing.
  3. Online Industrial Marketplaces: Purchase through CA-fire’s official storefronts on platforms like Alibaba or Made-in-China (avoid uncertified third-party sellers).

Comparing the K-ZSTBS 80-68°C Q3 J to Other Sidewall Sprinkler Models

K-ZSTBS vs. Tyco Sidewall Sprinkler

  • Activation Speed: The K-ZSTBS 80-68°C Q3 J activates at 68°C (faster than some tyco sidewall sprinkler models that use 74°C bulbs), critical for tight spaces where fires spread quickly.
  • Coverage Area: Both cover 12.96 m², but the K-ZSTBS operates on lower water pressure (ideal for residential use).
  • Price: The K-ZSTBS is typically 30–60% more affordable than a tyco residential sidewall model, making it a cost-effective choice for bulk projects.

K-ZSTBS vs. Viking Sidewall Sprinkler

  • Installation Ease: The K-ZSTBS mounts directly to walls, while a viking sidewall sprinkler may require additional brackets for some applications.
  • Durability: The K-ZSTBS’s chrome-plated brass frame outperforms the plastic components in some viking residential sidewall models in humid environments.
  • Coverage: Both cover 12.96 m², but the K-ZSTBS’s spray pattern is more tailored for narrow spaces.

K-ZSTBS vs. Concealed Sidewall Sprinkler

  • Installation Cost: A concealed sidewall sprinkler requires additional housing and labor, making it 20–30% more expensive to install than the K-ZSTBS.
  • Accessibility: The K-ZSTBS is easily accessible for inspections, while a concealed sidewall sprinkler head requires removing housing (adding maintenance time and cost).
  • Aesthetics: Both are discreet, but the K-ZSTBS requires no additional housing—making it a simpler choice for retrofits.

Conclusion – Why the K-ZSTBS 80-68°C Q3 J Is the Top Sidewall Fire Sprinkler for Tight Spaces

For residential and light commercial spaces where overhead sprinklers are unfeasible, the K-ZSTBS 80-68°C Q3 J sidewall fire sprinkler is the ideal solution. It combines space-saving horizontal sidewall sprinkler design, rapid 68°C activation, wide coverage, and durable construction—outperforming competitors like the tyco sidewall sprinkler or victaulic sidewall sprinkler in affordability, compatibility, and ease of use. Whether you’re outfitting an apartment complex with residential sidewall sprinkler units or retrofitting a small office with a reliable sidewall sprinkler, this model delivers the safety, efficiency, and aesthetic integration modern spaces demand.
Don’t leave tight spaces vulnerable to fire hazards—invest in the K-ZSTBS 80-68°C Q3 J sidewall sprinkler head today.

Contact Information:

  • Email: sales@ca-fire.com
  • Mobile: +86 13400715622
  • WhatsApp: +86 18150362095
  • WeChat: 404863577
  • Website: https://www.ca-fire.com

Related Fire Protection Products from CA-fire

Enhance your fire safety system with these complementary products:
  • Pendent Sprinklers: For open spaces where overhead mounting is feasible (pair with sidewall fire sprinkler units for full coverage).
  • Portable Fire Extinguishers: Layered protection for small, early-stage fires (ideal for kitchen or office areas).
  • Smoke Detectors: Early warning to complement fire sprinkler sidewall units in tight spaces.
External Link : For sidewall sprinkler installation standards, visit the National Fire Protection Association (NFPA) website (NFPA 13: Standard for the Installation of Sprinkler Systems).
  • Flow Coefficient (K): 80 (domestic standard) / 5.6 (international equivalent)
  • Nominal Operating Temperature: 68°C
  • Temperature-Sensing Element: 3mm glass bulb (red)
  • Response Index (RTI): ≤50 (m·s)½
  • Installation Type: Horizontal sidewall (upright/pendent/horizontal options available)
  • Connection Thread: R1/2 (for K=80)
  • Minimum Operating Pressure: 0.35MPa
  • Working Pressure Range: 0.35-0.80MPa
  • Coverage Area: Up to 9.2×5 meters (varies by installation height and layout)
  • Maximum Installation Height: 4.8 meters
  • Minimum Applicable Temperature: 4°C
  • Maximum Applicable Temperature: 38°C
  • Material: High-quality brass body with corrosion-resistant coating
  • Certifications: Complies with GB standards, holds public security fire product type approval and voluntary certification
