EC-ZSTZ 80-68°C Q3J Extended Coverage Fire Fighting Sprinkler – Precision Protection for Commercial Spaces

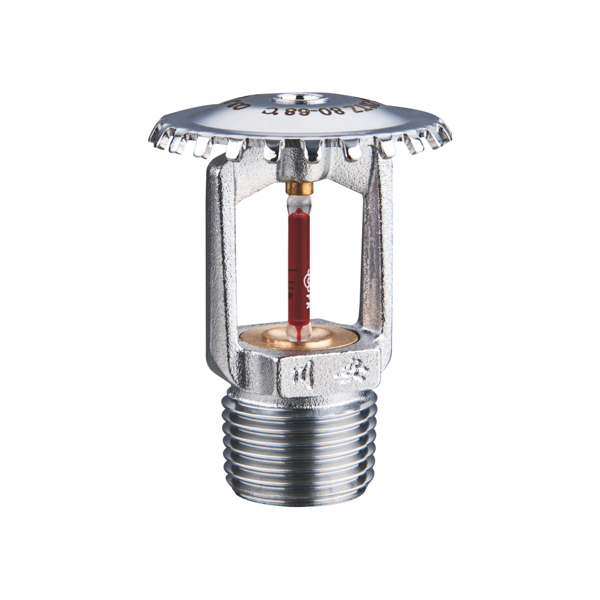

fire-fighting-sprinkler-system-EC-ZSTZ-80-68℃-Q3J
Download Catalog

EC-ZSTZ 80-68°C Q3J Extended Coverage Fire Fighting Sprinkler – Reliable Solution for Modern Fire Safety

In the dynamic landscape of commercial and industrial fire protection, a high-performance fire fighting sprinkler is a cornerstone of safeguarding lives, valuable assets, and business continuity. CA-Fire Protection Industry Co., Ltd., a renowned manufacturer with over a decade of expertise in fire safety equipment, proudly presents the EC-ZSTZ 80-68°C Q3J Extended Coverage Fire Fighting Sprinkler. Engineered to meet the evolving demands of modern buildings, this fire fighting sprinkler combines extended coverage capabilities, rapid response, and robust construction, making it an ideal choice for commercial facilities, office complexes, retail spaces, and industrial warehouses worldwide. Designed with precision and compliance to global standards, the EC-ZSTZ 80-68°C Q3J redefines efficiency in fire suppression, offering enhanced protection while optimizing installation costs for project stakeholders.
As a leading provider of integrated fire safety solutions, CA-Fire adheres to strict quality control measures and innovative engineering practices. The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler is a testament to this commitment, featuring an extended coverage design that surpasses the protection area of standard sprinklers—reducing the number of units required for large spaces and lowering overall project expenses. This fire fighting sprinkler is equipped with a heat-sensitive glass bulb that activates at 68°C (154°F), ensuring rapid suppression of fires in their incipient stages, before they can spread and cause catastrophic damage. Whether used in new construction, renovation projects, or fire system upgrades, the EC-ZSTZ 80-68°C Q3J delivers consistent performance, backed by certifications and approvals that meet international fire safety standards.
Commercial facility managers, contractors, and fire safety engineers trust CA-Fire’s fire fighting sprinkler products for their reliability, durability, and ease of integration. The EC-ZSTZ 80-68°C Q3J is compatible with most wet pipe fire protection systems, featuring a standard connection size that simplifies installation and replacement. Its robust construction, using high-quality materials resistant to corrosion and mechanical damage, ensures a long service life even in harsh commercial environments. Below is a comprehensive guide to the product’s specifications, key features, installation guidelines, applications, and advantages—providing all the critical information needed to make informed decisions for your fire protection needs.

Why Extended Coverage Fire Fighting Sprinklers Are Critical for Modern Spaces

The Limitations of Standard Sprinklers in Large Commercial Areas

Traditional fire fighting sprinklers are designed to cover specific, limited areas, which can be inefficient for large commercial spaces such as shopping malls, warehouses, and open-plan offices. In these environments, standard sprinklers often require dense spacing to ensure full coverage, increasing material costs, installation time, and maintenance efforts. Additionally, the need for more sprinkler heads can disrupt interior design aesthetics and create obstacles for lighting, HVAC systems, and other building infrastructure. This is where extended coverage fire fighting sprinkler models like the EC-ZSTZ 80-68°C Q3J offer a transformative solution—delivering wider coverage without compromising on fire suppression performance.
Extended coverage fire fighting sprinklers are engineered to protect larger areas per unit, reducing the total number of sprinklers needed for a project. For example, while a standard sprinkler may cover up to 130 square feet, the EC-ZSTZ 80-68°C Q3J can cover significantly more, depending on the hazard classification and installation height. This not only lowers material and labor costs but also simplifies system design and reduces potential points of failure. For commercial property owners and facility managers, this translates to long-term savings on maintenance, as fewer units mean fewer inspections, replacements, and repairs over time.

Key Benefits of the EC-ZSTZ 80-68°C Q3J Fire Fighting Sprinkler for Commercial Projects

The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler addresses the unique challenges of modern commercial spaces by combining extended coverage with rapid response and durability. One of its primary advantages is cost optimization: by covering larger areas, it reduces the number of sprinklers required, cutting down on procurement, installation, and maintenance expenses. This makes it an ideal choice for large-scale projects such as logistics warehouses, retail superstores, and corporate office campuses, where cost efficiency is a top priority.
Another critical benefit of this fire fighting sprinkler is its rapid activation. The 68°C glass bulb is highly sensitive to temperature changes, ensuring that the sprinkler triggers within seconds of a fire breaking out. This quick response is essential for suppressing fires in their early stages, minimizing property damage, and protecting occupants. Additionally, the EC-ZSTZ 80-68°C Q3J’s uniform water distribution pattern ensures comprehensive coverage, eliminating blind spots that could leave critical areas unprotected. Its compatibility with standard wet pipe systems further enhances its versatility, allowing seamless integration into existing fire protection infrastructure or new builds.

Technical Specifications of the EC-ZSTZ 80-68°C Q3J Fire Fighting Sprinkler

The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler is engineered to the highest precision, with technical parameters optimized for extended coverage and reliable fire suppression. Below is a detailed specification table, aligned with CA-Fire’s official product 画册 (brochure), outlining the mechanical, thermal, and performance characteristics of this innovative fire fighting sprinkler:
Parameter Detailed Specification
Product Name Extended Coverage Fire Fighting Sprinkler EC-ZSTZ 80-68°C Q3J
Model Number EC-ZSTZ 80-68°C Q3J
K-Factor 80 (5.6 gpm/psi¹ᐟ²) – Optimized for extended coverage water flow
Activation Temperature 68°C (154°F) – Orange heat-sensitive glass bulb (5mm diameter)
Response Type Q3 Quick Response (QR) – High-sensitivity thermal activation
Connection Size 3/4” NPT (DN20) Male Thread – Standard fire fighting sprinkler connection
Working Pressure Range 0.1 – 1.0 MPa (14.5 – 145 psi) – Compatible with commercial wet pipe systems
Maximum Test Pressure 2.5 MPa (363 psi) – Industrial-grade pressure resistance
Coverage Area Up to 230 square feet (21.37 m²) – Dependent on hazard classification and installation height
Spray Pattern Uniform full-cone water distribution – Eliminates coverage blind spots
Installation Type Upright mount – Ideal for ceiling or overhead installations in commercial spaces
Construction Materials Sprinkler Body: High-quality brass (H59-1); Deflector: 304 stainless steel; Glass Bulb: Borosilicate heat-sensitive glass
Overall Dimensions Height: 75 – 95mm; Diameter: 60mm – Compact design for versatile installation
Operating Temperature Range -4°C to 50°C (-20°F to 122°F) – Adaptable to varying commercial ambient conditions
Service Life 10 – 15 years (under normal commercial operation)
Certifications ISO 9001:2015, NFPA 13 Compliant, CE Certified
Compatibility All standard commercial wet pipe fire protection systems
Color Finish Chrome/silver (standard); Custom colors available upon request
Packaging 100 pieces per carton – Bulk packaging for commercial project procurement
Every EC-ZSTZ 80-68°C Q3J fire fighting sprinkler undergoes rigorous testing at CA-Fire’s state-of-the-art manufacturing facility in Quanzhou, China. From raw material inspection to final performance testing, each unit is vetted to ensure adherence to the above specifications and compliance with global fire safety standards. This commitment to quality ensures that the fire fighting sprinkler delivers consistent, reliable performance when it matters most.

Key Features of the EC-ZSTZ 80-68°C Q3J Fire Fighting Sprinkler

The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler stands out in the market for its innovative design, focusing on extended coverage, rapid response, and durability. CA-Fire’s engineering team has integrated advanced features to address the unique needs of modern commercial spaces, making this fire fighting sprinkler a top choice for fire safety professionals worldwide. Below are the core features that set the EC-ZSTZ 80-68°C Q3J apart:

Extended Coverage Design for Cost Efficiency

The defining feature of this fire fighting sprinkler is its extended coverage capability, which allows it to protect a larger area than standard sprinkler models. This is achieved through a precision-engineered deflector and optimized water flow pattern, which distribute water evenly over a wider radius. For commercial projects, this means fewer sprinklers are needed to cover the same space—reducing material costs, installation time, and long-term maintenance efforts. For example, a 10,000-square-foot warehouse may require 20% fewer EC-ZSTZ 80-68°C Q3J units compared to standard sprinklers, resulting in significant cost savings for project stakeholders.

Quick-Response Thermal Activation

Equipped with a 5mm borosilicate glass bulb filled with a specialized thermal liquid, the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler activates rapidly at 68°C. This quick response is critical for suppressing fires in their early stages, before they can spread to adjacent areas or escalate in intensity. The glass bulb’s high sensitivity ensures that even small temperature increases are detected promptly, triggering the sprinkler to release water within seconds. This feature is particularly valuable in commercial spaces with flammable materials, such as retail stores with packaging or warehouses with inventory, where fires can spread rapidly if not addressed immediately.

Durable, Corrosion-Resistant Construction

Built to withstand the rigors of commercial environments, the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler features a brass body (H59-1) and 304 stainless steel deflector. Brass is highly resistant to corrosion, rust, and humidity, making it ideal for spaces with varying ambient conditions—such as warehouses with high moisture levels or retail stores with temperature fluctuations. The stainless steel deflector ensures the water spray pattern remains consistent over time, even with exposure to dust, debris, or accidental bumps. This durable construction extends the sprinkler’s service life to 10–15 years under normal operation, reducing the need for frequent replacements and lowering maintenance costs for facility managers.

Standard Connection for Universal Compatibility

The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler features a standard 3/4” NPT (DN20) male thread connection, which is compatible with most wet pipe fire protection systems used in commercial buildings worldwide. This universal compatibility eliminates the need for custom adapters or modifications, simplifying the installation process for contractors. Whether integrating into a new fire system or replacing outdated sprinklers in an existing setup, the standard connection ensures a leak-tight seal and seamless integration—saving time and labor costs on the job site.

Uniform Water Distribution

CA-Fire’s precision-engineered deflector design ensures that the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler delivers a uniform full-cone water spray. This spray pattern eliminates coverage blind spots, ensuring that every part of the protected area receives sufficient water to suppress fires effectively. The uniform distribution is particularly important in large commercial spaces, where uneven water flow can leave critical areas unprotected and allow fires to spread. For fire safety engineers, this feature ensures compliance with fire codes and standards that mandate comprehensive coverage for commercial buildings.

Compact, Aesthetic Design

Unlike bulky industrial sprinklers, the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler has a compact, sleek profile that blends seamlessly with modern commercial interior design. Its chrome/silver finish is neutral and unobtrusive, making it suitable for spaces where aesthetics are a priority—such as luxury retail stores, corporate offices, and hospitality facilities. CA-Fire also offers custom color finishes upon request, allowing the sprinkler to match ceiling colors or interior decor without compromising on performance. This balance of function and design makes the EC-ZSTZ 80-68°C Q3J a versatile choice for a wide range of commercial applications.

Core Advantages of the EC-ZSTZ 80-68°C Q3J Fire Fighting Sprinkler

For commercial facility managers, contractors, and fire safety professionals, the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler offers a host of advantages that set it apart from standard and competing extended coverage models. These advantages are tailored to the unique needs of commercial fire protection projects, from cost savings and ease of installation to long-term reliability and compliance. Below are the key benefits of choosing the EC-ZSTZ 80-68°C Q3J:

Reduced Installation Costs for Large Spaces

The extended coverage design of the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler is its most significant advantage for commercial projects. By covering a larger area per unit, it reduces the number of sprinklers required, lowering material costs. Additionally, fewer sprinklers mean fewer pipe connections, less labor time for installation, and simplified system design—all of which contribute to substantial cost savings. For example, a large retail mall or warehouse could save thousands of dollars in material and labor costs by choosing this extended coverage fire fighting sprinkler over standard models.

Rapid Fire Suppression to Minimize Damage

The quick-response activation of the EC-ZSTZ 80-68°C Q3J ensures that fires are suppressed in their early stages, before they can spread and cause extensive damage to property and assets. This rapid response is critical for commercial spaces with high-value inventory, equipment, or documents—such as retail stores, data centers, and office buildings. By minimizing fire damage, the fire fighting sprinkler helps businesses resume operations faster, reducing downtime and lost revenue. It also lowers insurance premiums, as insurance providers often offer discounts for buildings equipped with quick-response fire suppression systems.

Low Maintenance and Long Service Life

The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler’s durable construction and corrosion-resistant materials ensure minimal maintenance requirements. Unlike sprinklers made from lower-quality materials, it does not require regular cleaning, coating, or adjustments to maintain performance. Routine inspections are simple and straightforward—only visual checks for damage, obstructions, or leaks are needed. This low maintenance burden frees up facility managers to focus on other critical tasks, while the 10–15 year service life ensures long-term reliability and value.

Global Compliance and Certification

CA-Fire’s EC-ZSTZ 80-68°C Q3J fire fighting sprinkler is fully compliant with international fire safety standards, including NFPA 13, ISO 9001:2015, and CE. This compliance ensures that the sprinkler is accepted for use in commercial projects across North America, Europe, Asia, and the Middle East—eliminating regional certification barriers for global contractors and facility managers. For projects requiring adherence to strict local codes, the EC-ZSTZ 80-68°C Q3J meets or exceeds the necessary requirements, providing peace of mind and ensuring regulatory compliance.

Versatile Compatibility with Existing Systems

The standard 3/4” NPT connection and compatibility with most wet pipe fire protection systems make the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler a versatile choice for retrofits and upgrades. Whether replacing outdated sprinklers in an existing system or integrating into a new build, the sprinkler’s universal compatibility simplifies installation and reduces the risk of compatibility issues. This versatility is particularly valuable for contractors working on renovation projects, where minimizing disruptions to existing infrastructure is a priority.

Key Applications of the EC-ZSTZ 80-68°C Q3J Fire Fighting Sprinkler

The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler is engineered for versatility, making it suitable for a wide range of commercial and light industrial applications. Its extended coverage, rapid response, and durable construction address the fire safety needs of various spaces, from small retail stores to large warehouses. Below are the key applications where this fire fighting sprinkler is most effective:

Retail Stores and Shopping Malls

Retail spaces, including shopping malls, department stores, and boutique shops, require efficient fire protection that balances coverage with aesthetic considerations. The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler’s extended coverage reduces the number of units needed, minimizing visual impact on store displays and interior design. Its rapid activation is critical for suppressing fires caused by flammable materials such as clothing, packaging, and electronics—protecting inventory, shoppers, and staff. The compact design also allows for easy integration with ceiling systems, avoiding disruptions to lighting and signage.

Warehouses and Logistics Centers

Warehouses and logistics facilities are often large, open spaces with high-value inventory and flammable materials. The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler’s extended coverage is ideal for these environments, reducing the number of sprinklers required to cover vast areas. Its durable construction withstands the dust, humidity, and temperature fluctuations common in warehouses, while its rapid activation suppresses fires before they can spread to stored goods. This fire fighting sprinkler is particularly suitable for light to moderate hazard warehouses, such as those storing non-flammable or moderately flammable materials.

Office Buildings and Corporate Campuses

Open-plan offices, corporate headquarters, and office campuses require fire protection that is both effective and unobtrusive. The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler’s compact design and extended coverage make it ideal for these spaces, as it reduces the number of visible units while ensuring comprehensive protection. Its rapid activation protects office equipment, documents, and personnel, while its compatibility with standard fire systems simplifies integration into existing infrastructure. For multi-story office buildings, the sprinkler’s uniform water distribution ensures consistent coverage across all floors.

Hospitality Facilities

Hotels, resorts, and motels prioritize guest safety and experience, making the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler an excellent choice. Its compact, aesthetic design blends with hotel interiors, from guest rooms and lobbies to ballrooms and restaurants. The rapid activation suppresses fires quickly, minimizing disruption to guests and protecting the facility’s reputation. The extended coverage also reduces installation costs for large hospitality complexes, such as resort campuses or hotel chains.

Educational Institutions

Schools, colleges, and universities require reliable fire protection for classrooms, auditoriums, libraries, and administrative buildings. The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler’s extended coverage is ideal for large spaces such as lecture halls and gymnasiums, reducing the number of units needed. Its durable construction withstands the high foot traffic and occasional rough use common in educational settings, while its rapid activation ensures the safety of students, staff, and visitors. Compliance with international standards also ensures that educational institutions meet regulatory requirements for fire safety.

Professional Installation Guidelines for the EC-ZSTZ 80-68°C Q3J Fire Fighting Sprinkler

Proper installation is critical to ensuring the optimal performance of the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler in commercial spaces. CA-Fire recommends that installation be performed by certified fire safety technicians or licensed contractors, in strict accordance with NFPA 13 and local fire code requirements. Improper installation can compromise the sprinkler’s performance, void certifications, and increase the risk of fire damage. Below are the step-by-step installation guidelines for this fire fighting sprinkler:

Pre-Installation Preparation

  1. Design Verification: Confirm that the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler is compatible with the fire protection system’s design, including flow rates, pressure requirements, and coverage area calculations. Ensure that the sprinkler’s K-factor (80) and coverage radius align with the space’s hazard classification and installation height.
  2. Material Inspection: Inspect all sprinkler heads for manufacturing defects (e.g., cracked glass bulbs, dented deflectors, or damaged threads) before installation. CA-Fire ships all fire fighting sprinkler units in protective packaging—damaged units should be returned immediately for replacement.
  3. Site Preparation: Clear the installation area of obstructions such as light fixtures, ductwork, or ceiling tiles that could block the sprinkler’s water spray. Ensure the mounting surface is flat, firm, and capable of supporting the sprinkler’s weight and system pressure.
  4. Tool and Hardware Preparation: Gather the necessary tools (adjustable wrench, thread sealant, pressure gauge) and hardware for installation. Use only high-quality PTFE thread sealant (not tape) to ensure a leak-tight connection—tape can break off and block the sprinkler’s orifice.

Step-by-Step Installation Process

  1. Pipe Thread Preparation: Clean the male NPT thread of the fire system’s pipe to remove dust, rust, or debris. Apply a thin, even layer of thread sealant to the pipe’s threads—avoid over-applying, as excess sealant can block water flow.
  2. Sprinkler Mounting: Hand-tighten the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler onto the pipe’s thread, ensuring that the deflector is facing upward (upright mount). Use an adjustable wrench to tighten the sprinkler an additional ¼–½ turn—do not over-tighten, as this can damage the body or threads.
  3. Alignment Check: Verify that the sprinkler is perfectly vertical and the deflector is level. Misalignment can alter the water spray pattern, reducing coverage and fire suppression effectiveness.
  4. Obstruction Clearance: Ensure a minimum clearance of 300mm (12 inches) between the sprinkler and any surrounding obstructions (per NFPA 13). This clearance is critical to ensuring unobstructed water spray.
  5. System Pressure Testing: After installing all sprinkler heads, conduct a hydrostatic pressure test of the fire system to 1.5 times the maximum working pressure (1.5 MPa for this sprinkler). Maintain the test pressure for 30 minutes to check for leaks at connections and pipe joints.
  6. Flow Testing: Perform a flow test to verify that the sprinkler delivers the correct water flow rate and coverage radius at the system’s operating pressure. Document all test results for the project’s fire safety records.
  7. Final Inspection: Conduct a visual inspection of all installed sprinklers to ensure they are undamaged, properly aligned, and free of obstructions. Label each sprinkler with its model number and installation date for future maintenance reference.

Critical Installation Notes

  • No Modifications: Do not paint, drill, or modify the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler in any way. Painting the glass bulb or deflector can insulate the thermal element, delaying activation, while modifications can compromise structural integrity and certifications.
  • Correct Mounting Only: This sprinkler is designed for upright mount only—do not install it as a pendent or sidewall sprinkler. Improper mounting will alter the water spray pattern and reduce performance.
  • Certified Technicians: Only certified fire safety technicians or licensed contractors should install this product. Unlicensed installation can void CA-Fire’s warranty and the sprinkler’s certifications.
  • Installation Height: Ensure the sprinkler is installed at the correct height (per NFPA 13 guidelines) for the space’s hazard classification. For high ceilings (over 4 meters), consult a fire safety engineer to determine if additional sprinklers or specialized mounting hardware are needed.

Maintenance and Inspection Guidelines

Regular maintenance and inspection are essential to ensuring the long-term performance and reliability of the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler. CA-Fire recommends following NFPA 25 and local fire code requirements for maintenance schedules, which typically include quarterly visual inspections and annual comprehensive testing. Below are the official maintenance guidelines for this fire fighting sprinkler:

Quarterly Visual Inspections

Perform a visual inspection of all EC-ZSTZ 80-68°C Q3J fire fighting sprinkler heads every three months to check for:
  • Physical damage (cracked glass bulbs, dented deflectors, or bent bodies)
  • Corrosion, rust, or discoloration of the brass body or stainless steel deflector
  • Obstructions (dust, debris, or objects) within 300mm of the sprinkler head
  • Leaks at the pipe connection
  • Misalignment or movement of the sprinkler head
  • Painting or modification of the sprinkler (strictly prohibited)
Any damaged, corroded, or modified sprinklers should be replaced immediately with genuine CA-Fire fire fighting sprinkler units to maintain system performance and certifications.

Annual Comprehensive Inspections and Testing

Once per year, hire a certified fire safety technician to perform a comprehensive inspection and testing of the fire system, including:
  • A full visual inspection of all sprinkler heads and pipework
  • A hydrostatic pressure test to check for leaks
  • A flow test to verify sprinkler performance and water coverage
  • A sample activation test (on spare sprinklers) to confirm activation temperature accuracy
  • Cleaning of any clogged pipe orifices (common in dusty commercial environments)
Document all inspection and test results in the facility’s fire safety log, and retain records for a minimum of three years (per NFPA 25 requirements).

Sprinkler Replacement Guidelines

Replace the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler in the following scenarios:
  1. Activation: Any sprinkler that has activated (even if undamaged) must be replaced—activated sprinklers cannot be reused and will not perform reliably in future fires.
  2. Damage: Any sprinkler with a cracked glass bulb, dented deflector, damaged thread, or corroded body must be replaced immediately.
  3. Modification/Painting: Any sprinkler that has been painted, drilled, or modified must be replaced—these alterations compromise performance and void certifications.
  4. Age: Replace all sprinklers after 15 years of service, even if they appear to be in good condition. Over time, internal components can degrade, reducing activation reliability.
  5. System Upgrades: When upgrading a fire protection system, replace old sprinklers with genuine CA-Fire EC-ZSTZ 80-68°C Q3J units to ensure compatibility and performance.
Always use genuine CA-Fire replacement parts—counterfeit or non-genuine sprinklers do not meet international standards and can compromise system performance.

Complementary Products from CA-Fire

CA-Fire offers a comprehensive range of fire safety products that complement the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler, providing integrated solutions for commercial fire protection systems. All complementary products meet the same strict quality standards and certifications, ensuring seamless compatibility and optimal performance. Below are key complementary products, with internal links to CA-Fire’s official website:
  1. ESFR Sprinklers: Early Suppression Fast Response (ESFR) sprinklers are designed for high-piled storage warehouses, complementing the EC-ZSTZ 80-68°C Q3J for facilities with both office and storage areas.
  2. Alarm Check Valves: CA-Fire’s FM-approved alarm check valves (wet, dry, and pre-action) control water flow and trigger fire alarms, working seamlessly with the EC-ZSTZ 80-68°C Q3J fire fighting sprinkler.
  3. Fire Water Monitors: High-performance fire water monitors deliver high-pressure water flow for manual fire suppression, ideal for large commercial spaces such as warehouses and shopping malls.
  4. Fire Hydrants: CA-Fire’s commercial fire hydrants (indoor and outdoor) provide reliable water supply for fire protection systems, ensuring the EC-ZSTZ 80-68°C Q3J has access to adequate water flow.
  5. Foam Bladder Tanks: For high-risk commercial facilities (e.g., chemical plants, oil terminals), foam bladder tanks deliver fire-suppressant foam that works with sprinkler systems to extinguish flammable liquid fires.

Why Choose CA-Fire for Your Fire Fighting Sprinkler Needs

CA-Fire Protection Industry Co., Ltd. has established itself as a global leader in fire safety equipment since its founding in 2012. With a focus on innovation, quality, and customer satisfaction, CA-Fire is trusted by commercial facility managers, contractors, and fire safety professionals worldwide. Below are the key reasons to choose CA-Fire for your EC-ZSTZ 80-68°C Q3J fire fighting sprinkler needs:
  1. Innovative Engineering: CA-Fire’s team of fire safety engineers leverages advanced technology and industry expertise to design products that meet the evolving needs of modern commercial spaces.
  2. Strict Quality Control: All products are manufactured in an ISO 9001:2015 certified facility, undergoing rigorous testing to ensure compliance with international standards.
  3. Global Certifications: The EC-ZSTZ 80-68°C Q3J fire fighting sprinkler meets NFPA 13, ISO 9001:2015, and CE standards, ensuring acceptance in commercial projects worldwide.
  4. Cost-Effective Solutions: As a direct OEM manufacturer, CA-Fire offers competitive pricing with no middleman markups, making the EC-ZSTZ 80-68°C Q3J an affordable choice for large-scale projects.
  5. Customization Options: CA-Fire offers custom color finishes and packaging for the EC-ZSTZ 80-68°C Q3J, catering to the unique needs of commercial clients.
  6. Global Customer Support: CA-Fire’s multilingual team of fire safety experts provides 24/7 support, from product selection and technical guidance to installation and after-sales service.
