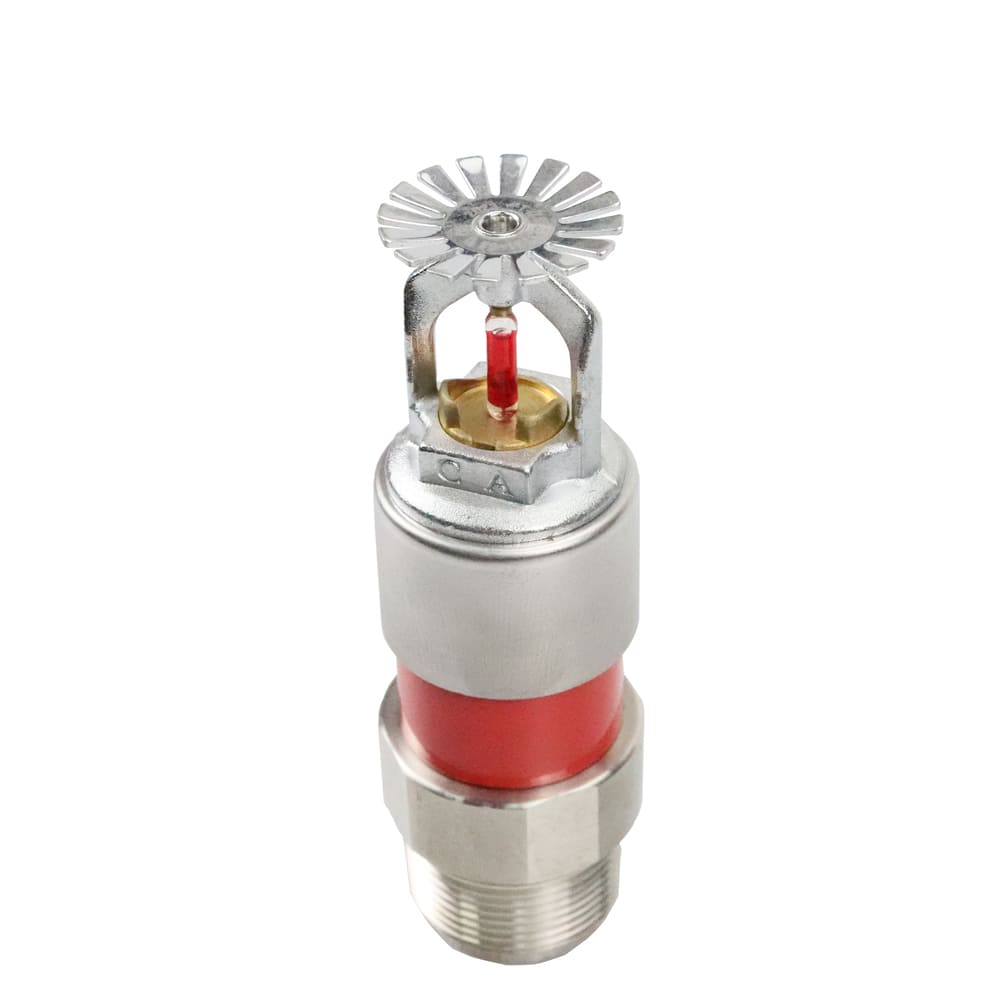

Dry Sprinkler Head: Premium Dry Pendent Sprinkler Head for Freeze-Prone Environments
Dry Sprinkler Head – Industrial-Grade Dry Pendent Sprinkler Head for Cold & Unheated Spaces
When fire protection meets freezing temperature challenges, a high-quality dry sprinkler head becomes an indispensable asset for safeguarding unheated warehouses, cold storage facilities, outdoor canopies, and industrial areas. As a core product in CA-fire Protection’s extensive sprinkler lineup, our dry sprinkler head series—including models T-ZSTGX 80-68°CQ5, T-ZSTGDY 80-68°CQ5, T-ZSTGX 80-68°CQ5CC (Socket Type), ZSTGX 80-74°CY, and ZSTGX 115-74°CY—redefines reliability in low-temperature fire safety. Also known as dry pendent sprinkler head for overhead installation scenarios, these specialized heads are engineered to prevent pipe freezing while delivering rapid, targeted fire suppression when activated. This comprehensive guide delves into the technical excellence, core features, model specifications, applications, and advantages of our dry sprinkler head range, ensuring you have all the insights to select the perfect solution for freeze-prone environments. With compliance to global standards like NFPA 13 and FM Approval, CA-fire’s dry sprinkler head products stand as a trusted choice for contractors, facility managers, and project engineers worldwide.
What Is a Dry Sprinkler Head?
Core Definition of Dry Sprinkler Head
A dry sprinkler head is a specialized fire sprinkler designed for use in dry pipe fire protection systems, where pipes are filled with pressurized air or nitrogen instead of water. Unlike wet sprinkler heads that keep water in constant contact with the sensing element, a dry sprinkler head features a dry barrel construction that isolates water from the head until a fire is detected. This design eliminates the risk of frozen or burst pipes in environments where temperatures drop below 4°C (39°F), making it a critical dry pendent sprinkler head solution for cold storage, unheated warehouses, and outdoor structures. When a fire breaks out, the heat triggers the head’s activation mechanism (either a glass bulb or fusible alloy link), releasing the pressurized air in the pipes and allowing water to flow through the head to suppress flames.
How Does a Dry Pendent Sprinkler Head Work?
Our dry sprinkler head operates through a precise, reliable sequence tailored for low-temperature environments:
- Standby State: In normal conditions, the dry sprinkler head is integrated into a dry pipe system where pipes are pressurized with air or nitrogen. The head’s dry barrel design prevents water from entering the head itself, safeguarding against freezing damage in cold temperatures.
- Activation Trigger: When a fire occurs, the ambient temperature rises to the head’s rated activation point (68°C or 74°C for our models). For glass bulb variants (e.g., T-ZSTGX 80-68°CQ5), the liquid inside the 5mm red glass bulb expands and shatters; for fusible alloy models (e.g., ZSTGX 80-74°CY), the alloy link melts, releasing the valve mechanism.
- Water Flow Initiation: The activation of the dry pendent sprinkler head causes a rapid drop in air pressure within the pipes, triggering the dry pipe valve to open. Water then flows through the pipes and the dry sprinkler head, directed by a precision deflector to cover the protected area with a uniform spray.
- Fire Suppression: The high-velocity water spray from the dry sprinkler head quickly cools the fire, suppresses flames, and prevents re-ignition—critical for minimizing property damage in freeze-prone spaces where fire spread can be accelerated by dry conditions.
Key Models & Specifications of Dry Sprinkler Head
CA-fire’s dry sprinkler head series includes multiple specialized models to meet diverse installation and hazard requirements, all engineered with industrial-grade materials and strict quality control. Below are the core specifications of our flagship models, sourced directly from CA-fire’s product catalog:
T-ZSTGX Series Dry Sprinkler Head (Glass Bulb Activation)
| Model | T-ZSTGX 80-68°CQ5 | T-ZSTGDY 80-68°CQ5 | T-ZSTGX 80-68°CQ5CC (Socket Type) |
|---|---|---|---|
| Core Keyword Alignment | dry sprinkler head | dry pendent sprinkler head | dry sprinkler head |
| K-Factor | K=80 | K=80 | K=80 |
| Activation Temperature | 68°C (155°F) | 68°C (155°F) | 68°C (155°F) |
| Sensing Element | 5mm Red Glass Bulb | 5mm Red Glass Bulb | 5mm Red Glass Bulb |
| Connection Type | Threaded | Threaded | Socket |
| Installation Type | Pendent/Upright | Pendent | Pendent |
| Minimum Operating Temperature | 4°C (39°F) | 4°C (39°F) | 4°C (39°F) |
| Maximum Ambient Temperature | 38°C (100°F) | 38°C (100°F) | 38°C (100°F) |
| Response Time Index (RTI) | 80-360 (m·s) | 80-360 (m·s) | 80-360 (m·s) |
| Protected Coverage Area | Up to 12.96 m² (3.6m × 3.6m) | Up to 12.96 m² (3.6m × 3.6m) | Up to 12.96 m² (3.6m × 3.6m) |
| Customizable Length | 80-1500mm | 80-1500mm | 80-1500mm |
| Certifications | NFPA 13 Compliant, ISO 9001 Certified | NFPA 13 Compliant, ISO 9001 Certified | NFPA 13 Compliant, ISO 9001 Certified |
ZSTGX Series Dry Sprinkler Head (Fusible Alloy Activation)
| Model | ZSTGX 80-74°CY | ZSTGX 115-74°CY |
|---|---|---|
| Core Keyword Alignment | dry pendent sprinkler head | dry sprinkler head |
| K-Factor | K=80 | K=115 |
| Activation Temperature | 74°C (165°F) | 74°C (165°F) |
| Sensing Element | Fusible Alloy Link | Fusible Alloy Link |
| Minimum Activation Temperature | 71°C (160°F) | 71°C (160°F) |
| Connection Type | Threaded | Threaded |
| Installation Type | Pendent/Upright | Pendent/Upright |
| Minimum Operating Temperature | 4°C (39°F) | 4°C (39°F) |
| Maximum Ambient Temperature | 44°C (111°F) | 44°C (111°F) |
| Response Time Index (RTI) | 80-360 (m·s) | 80-360 (m·s) |
| Protected Coverage Area | Up to 12.96 m² (3.6m × 3.6m) | Up to 12.96 m² (3.6m × 3.6m) |
| Customizable Length | 80-1500mm | 80-1500mm |
| Certifications | NFPA 13 Compliant, ISO 9001 Certified | NFPA 13 Compliant, ISO 9001 Certified |
Core Features of CA-fire Dry Sprinkler Head
Freeze-Proof Dry Barrel Design
The most defining feature of our dry sprinkler head is its dry barrel construction, which isolates water from the sensing element and internal components. This design prevents water from stagnating in the head, eliminating the risk of freezing and pipe damage in temperatures as low as 4°C. For dry pendent sprinkler head installations in overhead positions, this freeze-proof design ensures year-round reliability without the need for expensive insulation or trace heating.
Dual Activation Mechanisms for Versatility
Our dry sprinkler head series offers two activation options to suit diverse environments:
- Glass Bulb Activation: Models like T-ZSTGX 80-68°CQ5 use a 5mm red glass bulb calibrated to 68°C, ensuring rapid response to fires while resisting false triggers from normal temperature fluctuations. The bulb’s high-quality construction withstands vibration and minor impacts, making it ideal for industrial warehouses.
- Fusible Alloy Activation: ZSTGX 80-74°CY and ZSTGX 115-74°CY feature fusible alloy links that melt at 74°C. Leveraging a lever mechanism to reduce alloy stress, these heads offer enhanced shock resistance and durability, perfect for high-traffic areas like shipping docks and cold storage facilities.
Industrial-Grade Durability
Constructed with corrosion-resistant chrome-plated brass frames and stainless steel deflectors, our dry sprinkler head products are built to withstand harsh industrial environments. The materials resist humidity, chemical exposure, and mechanical wear, ensuring a service life of 10-15 years. For socket-type models like T-ZSTGX 80-68°CQ5CC, the secure connection design prevents air leaks, maintaining system pressure in standby mode.
Customizable Length for Flexible Installation
All dry sprinkler head models offer customizable total lengths (80-1500mm), allowing for installation in deep ceiling cavities, outdoor canopies, or cold storage facilities with thick insulation. This flexibility makes our dry pendent sprinkler head products adaptable to diverse architectural layouts, eliminating the need for custom fabrication.
Global Compliance & Reliability
Every dry sprinkler head from CA-fire meets or exceeds international standards, including NFPA 13, FM Approval, and ISO 9001:2015. Rigorous testing—including hydrostatic pressure tests at 6.4MPa for strength and 3.2MPa for seals—ensures consistent performance and compliance with local building codes in over 50 countries. Whether used in a small unheated garage or a large industrial cold storage facility, our dry sprinkler head delivers reliable fire suppression when it matters most.
Applications of Dry Sprinkler Head
Industrial Facilities
- Unheated Warehouses: Protect stored goods in warehouses where heating is impractical or cost-prohibitive, using dry pendent sprinkler head models for overhead installation.
- Cold Storage Facilities: Safeguard food, pharmaceuticals, and chemicals stored at low temperatures, as the dry sprinkler head’s freeze-proof design prevents pipe damage.
- Shipping Docks & Outdoor Canopies: Ideal for open-air loading docks and canopies exposed to freezing temperatures, where wet sprinkler heads would be at risk of bursting.
Commercial & Public Spaces
- Parking Garages: Especially underground or open-air garages in cold climates, where dry sprinkler head installations prevent freezing during winter months.
- Retail Stores & Shopping Centers: Protect unheated storage areas, utility rooms, and seasonal extensions with compact dry pendent sprinkler head models that blend with architectural designs.
- Schools & Community Centers: Safeguard unheated auditoriums, basements, and maintenance rooms, ensuring compliance with fire safety codes without compromising on temperature resilience.
Specialized Environments
- Oil & Gas Facilities: Protect outdoor equipment and pipelines in cold regions, where the dry sprinkler head’s durability and freeze resistance stand up to harsh conditions.
- Construction Sites: Provide temporary fire protection for winter construction projects, using dry sprinkler head systems that can withstand freezing temperatures during off-hours.
- Telecommunication Towers & Outdoor Enclosures: Safeguard electrical equipment in outdoor enclosures, where low temperatures are a constant challenge.
Dry Sprinkler Head vs. Wet Sprinkler Head
Understanding the key differences between dry sprinkler head and wet sprinkler head helps in selecting the right solution for your environment:
| Feature | Dry Sprinkler Head | Wet Sprinkler Head |
|---|---|---|
| Core Keyword | dry sprinkler head, dry pendent sprinkler head | Wet sprinkler head |
| Pipe Content | Pressurized air/nitrogen | Pressurized water |
| Temperature Range | 4°C to 38°C (freeze-proof) | 4°C to 38°C (risk of freezing below 4°C) |
| Activation Response | Slightly longer (air evacuation required) | Instant (water ready in pipes) |
| Ideal Environments | Unheated warehouses, cold storage, outdoor spaces | Heated commercial buildings, residential spaces |
| Installation Complexity | Moderate (requires dry pipe valve and air compressor) | Simple (direct water connection) |
| Risk of Water Damage | Lower (water only enters pipes after activation) | Higher (leaks can cause immediate damage) |
For freeze-prone environments, the dry sprinkler head is the clear choice, as it eliminates the risk of frozen pipes while delivering reliable fire suppression.
Advantages of CA-fire Dry Sprinkler Head
Unmatched Freeze Protection
The primary advantage of our dry sprinkler head is its ability to operate in temperatures as low as 4°C, protecting pipes from freezing and bursting. This eliminates costly repairs and downtime associated with frozen sprinkler systems.
Versatile Installation Options
With pendant and upright installation types, customizable lengths, and multiple connection options (threaded, socket), our dry sprinkler head products adapt to diverse architectural and project requirements. The dry pendent sprinkler head variant is particularly popular for overhead installations in warehouses and cold storage facilities.
Industrial-Grade Reliability
Constructed with high-quality materials and rigorous testing, our dry sprinkler head offers a long service life of 10-15 years, reducing replacement costs and maintenance frequency. The corrosion-resistant design ensures performance in humid or chemical-exposed environments.
Global Compliance
Meeting NFPA 13, FM Approval, and ISO 9001 standards, our dry sprinkler head ensures regulatory compliance for commercial and industrial projects worldwide. This compliance simplifies the permitting process and provides peace of mind for facility managers.
Cost-Effective Solution
While the initial installation cost of a dry sprinkler head system may be higher than wet systems, the long-term savings from avoiding freeze damage and reducing maintenance make it a cost-effective investment for freeze-prone environments. Bulk pricing options for contractors and developers further enhance cost efficiency.
How to Choose the Right Dry Sprinkler Head
Consider the Environment
- Temperature Range: Ensure the dry sprinkler head’s minimum operating temperature (4°C) aligns with your environment’s coldest conditions.
- Hazard Level: For light-to-medium hazards (e.g., retail stores), K=80 models like T-ZSTGX 80-68°CQ5 are suitable. For medium-to-high hazards (e.g., industrial warehouses), opt for K=115 models like ZSTGX 115-74°CY.
Installation Type
- Pendent Installation: Choose dry pendent sprinkler head models for overhead mounting in open spaces.
- Upright Installation: Select upright variants for installation in narrow spaces or where pendant heads may be damaged.
Activation Mechanism
- Glass Bulb: Ideal for environments with minimal vibration, offering precise temperature activation.
- Fusible Alloy: Better for high-vibration areas, providing enhanced durability and shock resistance.
Customization Needs
If your project requires specific lengths or connection types, CA-fire’s customizable dry sprinkler head models (80-1500mm length) can be tailored to your requirements.
Maintenance & Installation Tips for Dry Sprinkler Head
Installation Guidelines
- Hire Licensed Professionals: Engage certified fire protection contractors with experience in dry pipe systems to ensure proper installation of dry sprinkler head products.
- System Compatibility: Ensure the sprinkler is compatible with your dry pipe valve (e.g., CA-fire’s ZSFC series dry pipe valves) and air compressor.
- Pressure Testing: After installation, conduct a hydrostatic pressure test (3.2MPa for 30 minutes) to check for leaks and ensure airtight integrity.
- Spacing Requirements: Maintain a maximum spacing of 3.6m between sprinklers units to ensure overlapping coverage (up to 12.96 m² per head).
Maintenance Best Practices
- Quarterly Inspections: Visually inspect dry sprinkler head units for damage, corrosion, or obstructions (e.g., dust, debris). Ensure the sensing element (glass bulb or fusible alloy link) is intact.
- Annual System Testing: Hire professionals to test the dry pipe system, including air pressure checks and activation tests to verify the dry sprinkler head functions correctly.
- Replacement Guidelines: Replace dry sprinkler head units every 10-15 years or if damaged, corroded, or activated. Immediately replace any head with a cracked glass bulb or melted fusible alloy link.
- Winter Preparation: In extremely cold regions, ensure the air compressor is functioning properly to maintain system pressure, preventing moisture buildup in pipes.
Why Choose CA-fire for Dry Sprinkler Head?
CA-fire Protection is a global leader in fire safety equipment, with over a decade of experience manufacturing high-quality dry sprinkler head products. Our key advantages include:
- Certified Quality: Every sprinkler heads undergoes rigorous testing to meet international standards, ensuring reliability in critical moments.
- Technical Expertise: Our team of fire protection engineers provides personalized guidance to select the right dry pendent sprinkler head model for your project.
- Customization: Flexible length and connection options to meet unique installation requirements.
- Global Support: Shipping to 50+ countries, with local authorized distributors providing on-site support and maintenance services.
- Customer-Centric Service: Responsive quotes within 24 hours, flexible delivery timelines, and a 1-year manufacturer’s warranty for all sprinklers products.
Contact Us for Dry Sprinkler Head Solutions
Ready to enhance your freeze-prone environment’s fire safety with CA-fire’s premium sprinkler head products? Contact our sales team today to request a quote, discuss technical requirements, or learn more about our full range of fire protection solutions:
- Email: sales@ca-fire.com
- Mobile/WhatsApp: +86 13400715622 / +86 18150362095
- WeChat: 404863577
- Website: https://www.ca-fire.com
