B-DSXC Series Deluge Fire Sprinkler System: High-Coverage Industrial Fire Protection
B-DSXC Deluge Fire Sprinkler System – Heavy-Duty Sprinkler Heads for High-Hazard Environments
In high-hazard industrial environments—such as chemical plants, oil refineries, and storage facilities for flammable materials—a reliable deluge fire sprinkler system is the first line of defense against rapid, large-scale fires. The B-DSXC series deluge sprinkler heads (including models B-DSXC-142, B-DSXC-202, B-DSXC-242, B-DSXC-281, and B-DSXC-360), manufactured by CA-fire Protection Co., Ltd., are engineered to deliver massive, rapid water discharge as part of a deluge sprinkler system, suppressing fires in seconds to prevent catastrophic damage. As a critical component of deluge fire sprinkler system setups, these heavy-duty heads are designed for 下垂 (pendent) installation, with wide coverage radii and durable construction to withstand harsh industrial conditions. This comprehensive guide explores every aspect of the B-DSXC series, from technical specifications and core features to applications, installation, and purchasing options, ensuring you have all the insights to protect high-risk facilities with a proven deluge sprinkler system.
Understanding the B-DSXC Deluge Fire Sprinkler System
What Is a Deluge Fire Sprinkler System?
A deluge fire sprinkler system is a specialized fire protection setup designed for high-hazard areas where fires spread rapidly. Unlike standard sprinkler systems (which activate individually), a deluge sprinkler system uses open sprinkler heads (no heat-sensitive bulbs) connected to a water supply controlled by a deluge valve. When a fire is detected (via heat or smoke sensors), the valve opens, and water flows simultaneously through all deluge sprinkler head units, flooding the protected area with water to suppress flames immediately. The B-DSXC series heads are purpose-built for this system, with large orifices and wide-deflection designs to maximize water coverage—critical for containing fires in environments like chemical storage yards, power plants, and aircraft hangars.
Role of B-DSXC Deluge Sprinkler Heads in a Deluge Fire Sprinkler System

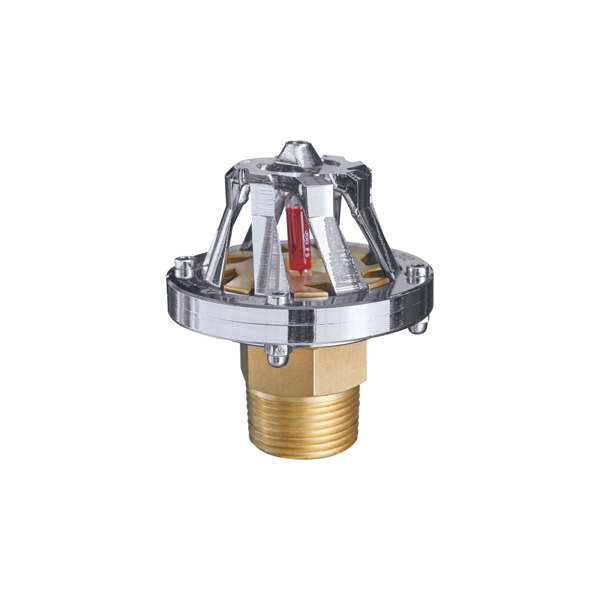

The B-DSXC series deluge sprinkler head units are the frontline components of a deluge fire sprinkler system, responsible for distributing water evenly across high-hazard spaces. Unlike standard sprinkler heads (which have closed orifices), these heads feature open nozzles that remain unobstructed—ready to discharge water the moment the deluge valve activates. Each model (e.g., B-DSXC-202, B-DSXC-360) is engineered with specific coverage radii and connection threads to match the needs of different facility sizes and hazard levels. For example, the B-DSXC-360 offers a 4.0m coverage radius, making it ideal for large open areas, while the B-DSXC-142 provides a 6.0m radius for expansive storage yards. Together, these heads form a deluge sprinkler system that delivers uniform, high-volume water flow to stop fires before they escalate.
Specifications of B-DSXC Series Deluge Sprinkler Head
Technical Parameters of B-DSXC Deluge Sprinkler Heads
The B-DSXC series deluge sprinkler head units are manufactured to strict industrial standards, with each model tailored to specific coverage and pressure requirements. Based on CA-fire’s product catalog, the detailed technical specifications are as follows:
| Parameter | B-DSXC-142 | B-DSXC-202 | B-DSXC-242 | B-DSXC-281 | B-DSXC-360 |
|---|---|---|---|---|---|
| Rated Working Pressure | 0.25 MPa | 0.25 MPa | 0.25 MPa | 0.25 MPa | 0.25 MPa |
| Working Pressure Range | 0.1-0.7 MPa | 0.1-0.7 MPa | 0.1-0.7 MPa | 0.1-0.7 MPa | 0.1-0.7 MPa |
| Connection Thread | R3/4 | R3/4 | R3/4 | R3/4 | R1 |
| Installation Method | Pendent (下垂) | Pendent (下垂) | Pendent (下垂) | Pendent (下垂) | Pendent (下垂) |
| Installation Height | 3-15 m | 3-15 m | 3-18 m | 3-18 m | 3-18 m |
| Effective Coverage Radius | 6.0 m | 6.0 m | 5.4 m | 4.8 m | 4.0 m |
| Installation Spacing | 6 m | 6 m | 2.7 m | 2.4 m | 2 m |
| Distance to End Wall | 3 m | 3 m | 2.7 m | 2.4 m | 2 m |
| Distance to Suspended Ceiling | 0.1-0.25 m | 0.1-0.25 m | 0.1-0.25 m | 0.1-0.25 m | 0.1-0.25 m |
| Distance to Ceiling (No Suspension) | 0.1-1.2 m | 0.1-1.2 m | 0.1-1.2 m | 0.1-1.2 m | 0.1-1.2 m |
| Material | Brass frame, stainless steel deflector | Brass frame, stainless steel deflector | Brass frame, stainless steel deflector | Brass frame, stainless steel deflector | Brass frame, stainless steel deflector |
Key Features of B-DSXC Deluge Sprinkler Heads
- Heavy-Duty Construction: Each deluge sprinkler head features a brass frame and stainless steel deflector, resisting corrosion, impact, and extreme temperatures—ideal for harsh industrial environments like chemical plants or offshore facilities.
- Wide Coverage Radii: With coverage radii ranging from 4.0 m (B-DSXC-360) to 6.0 m (B-DSXC-142/202), these heads minimize the number of units needed for large spaces, reducing installation costs.
- High Pressure Compatibility: Designed for working pressures of 0.1-0.7 MPa, the heads integrate seamlessly with industrial deluge fire sprinkler system setups, including those with fire pumps for high-volume discharge.
- Flexible Installation: Pendent (下垂) mounting and adjustable installation heights (3-18 m) make the heads suitable for diverse facility layouts, from low-ceiling warehouses to high-bay storage yards.
- Open-Nozzle Design: As part of a deluge sprinkler system, the open nozzle ensures instant water flow when the deluge valve activates, critical for suppressing fast-spreading fires in high-hazard areas.
Applications of B-DSXC Deluge Fire Sprinkler System
Suitable Environments for B-DSXC Deluge Sprinkler Heads
The B-DSXC series deluge sprinkler head units are engineered for high-hazard industrial environments where a deluge fire sprinkler system is mandatory. Key application areas include:
- Chemical & Petrochemical Facilities: Refineries, chemical plants, and storage tanks for flammable liquids rely on deluge sprinkler system setups to suppress fires that can spread explosively.
- Oil & Gas Infrastructure: Offshore platforms, pipeline terminals, and fuel storage yards use these heads to protect against hydrocarbon fires.
- Power Generation Plants: Coal-fired power plants, turbine halls, and transformer yards benefit from the rapid water discharge of a deluge fire sprinkler system to contain electrical or fuel-related fires.
- Aerospace Facilities: Aircraft hangars and maintenance bays use deluge sprinkler system setups to protect against fuel and hydraulic fluid fires.
- Warehouses for Hazardous Materials: Storage facilities for combustible dust, flammable solids, or explosive materials require the massive coverage of a deluge sprinkler system to prevent large-scale blazes.
- Metallurgical Plants: Steel mills and foundries use these heads to protect against molten metal fires and heat-related hazards.
Compatibility with Deluge Fire Sprinkler System Components
The B-DSXC series deluge sprinkler head units are fully compatible with standard deluge fire sprinkler system components, including:
- Deluge Valves: Such as CA-fire’s ZSFU series deluge valves, which control water flow to the heads.
- Fire Detection Sensors: Heat detectors or flame detectors that trigger the deluge valve when a fire is detected.
- Fire Pumps: High-capacity pumps that maintain the 0.1-0.7 MPa working pressure required for optimal head performance.
- Piping Systems: Industrial-grade steel or PVC pipes (compatible with R3/4 or R1 threads) that distribute water to the heads.
This compatibility ensures seamless integration into new or existing deluge sprinkler system setups, simplifying installation and maintenance for industrial facilities.
Buy Deluge Fire Sprinkler System: How to Purchase B-DSXC Series
Why Choose CA-fire for Your Deluge Fire Sprinkler System Needs
When investing in a deluge fire sprinkler system for high-hazard environments, partnering with a reputable manufacturer is critical. CA-fire Protection Co., Ltd. is a global leader in industrial fire protection, with decades of experience engineering deluge sprinkler system components that meet international standards (including GB 5135.7 and FM compliance for select models). The B-DSXC series heads are manufactured in ISO 9001-certified facilities, with each unit undergoing hydrostatic pressure testing to ensure durability and performance.
CA-fire’s key advantages include:
- Customization: Tailor deluge sprinkler head models (e.g., B-DSXC-202 for 6m coverage) to match your facility’s size and hazard level.
- Technical Support: A team of industrial fire protection engineers provides on-site consultation to design deluge fire sprinkler system layouts that meet local safety codes.
- Global Distribution: Shipping to 50+ countries, with authorized distributors in key industrial regions to provide local support.
- Warranty: A 2-year manufacturer’s warranty covers defects in materials and workmanship, ensuring long-term reliability.
Wholesale and Retail Options
CA-fire offers flexible purchasing options for the B-DSXC series deluge sprinkler head units, catering to industrial clients:
- Wholesale: For system integrators, contractors, and facility managers, bulk orders (100+ units) qualify for volume discounts, ideal for large-scale deluge fire sprinkler system installations.
- Custom Orders: Request modified specifications (e.g., special coatings for corrosive environments) for unique facility needs.
- Replacement Parts: Purchase individual heads or components (deflectors, frames) for maintenance and system upgrades.
To ensure authenticity and warranty coverage, all purchases are recommended through CA-fire’s official channels or authorized distributors.
Deluge Fire Sprinkler System Price: Factors Affecting Cost
Key Factors That Influence B-DSXC Series Pricing
The cost of B-DSXC deluge sprinkler head units (as part of a deluge fire sprinkler system) varies based on:
- Model Selection: Larger models (e.g., B-DSXC-360 with R1 threads) may cost slightly more than smaller models (e.g., B-DSXC-202 with R3/4 threads) due to larger components.
- Order Quantity: Bulk orders (500+ units) receive 20-30% discounts, reducing per-unit costs for large industrial projects.
- Customization: Special coatings (e.g., anti-corrosion plating for offshore use) or modified threads incur additional costs.
- Delivery Location: International shipping to remote industrial sites (e.g., offshore platforms) may include logistics surcharges, while domestic (China) delivery offers lower rates.
Getting a Competitive Quote
To obtain a personalized quote for B-DSXC deluge sprinkler head units or a complete deluge fire sprinkler system, contact CA-fire Protection with:
- The specific B-DSXC model(s) needed.
- Order quantity.
- Facility location and hazard level (e.g., chemical plant, oil refinery).
- Any customization requirements.
The sales team will respond within 24 hours with a detailed quote, including product costs, shipping fees, and technical support options.
Deluge Sprinkler System Installation & Maintenance
Installation Guidelines for B-DSXC Deluge Sprinkler Heads
Proper installation is critical for the performance of a deluge fire sprinkler system using B-DSXC heads:
- Hire Certified Contractors: Engage industrial fire protection contractors trained in deluge sprinkler system installation to ensure compliance with local safety codes (e.g., NFPA 15 for water spray systems).
- Follow Spacing Requirements: Adhere to model-specific spacing (e.g., 6m for B-DSXC-202, 2m for B-DSXC-360) to ensure overlapping coverage.
- Verify Pressure Compatibility: Ensure the system’s water pressure (0.1-0.7 MPa) matches the heads’ working range.
- Test the Deluge Valve: After installation, conduct a dry test (valve activation without water) and a wet test (full water discharge) to confirm all heads function simultaneously.
Maintenance Tips for B-DSXC Deluge Sprinkler Heads
To preserve deluge fire sprinkler system reliability:
- Quarterly Inspections: Check heads for corrosion, damage, or blockages (e.g., debris in the open nozzle).
- Annual Testing: Activate the deluge valve to verify water flow through all heads, and clean deflector surfaces to maintain coverage patterns.
- Replacement: Replace heads that show corrosion, damage, or wear (typically every 5-10 years in harsh environments).
- Winter Protection: In cold climates, drain the deluge sprinkler system to prevent freezing, which can damage heads and piping.
Conclusion: Why B-DSXC Deluge Fire Sprinkler System Is Essential for High-Hazard Facilities
Summing Up the Benefits of B-DSXC Deluge Sprinkler Heads
The B-DSXC series deluge sprinkler head units are the backbone of a reliable deluge fire sprinkler system, offering heavy-duty construction, wide coverage, and seamless integration for high-hazard industrial environments. Whether protecting a chemical plant, oil refinery, or power plant, these heads deliver rapid, massive water discharge to suppress fires before they cause catastrophic damage.
Choosing the B-DSXC series from CA-fire means investing in a deluge sprinkler system backed by industrial expertise, global certifications, and responsive customer support—critical for safeguarding lives, equipment, and facilities in high-risk settings.
Take Action Today
Don’t compromise on high-hazard fire protection—contact CA-fire Protection to learn more about the B-DSXC deluge fire sprinkler system or request a quote. With competitive pricing, global shipping, and technical expertise, CA-fire is your trusted partner for industrial fire safety.
For more information about CA-fire’s industrial fire protection products—including deluge valves and fire pumps—visit the official website.
Contact Information:
- Email: sales@ca-fire.com
- Mobile: +86 13400715622
- WhatsApp: +86 18150362095
- WeChat: 404863577
- Website: https://www.ca-fire.com
External Link ： For guidelines on designing deluge fire sprinkler system for high-hazard environments, visit the National Fire Protection Association (NFPA) website (NFPA 15: Water Spray Fixed Systems for Fire Protection).
