What Is a Gate Valve?

A gate valve is a linear-motion isolation valve that uses a flat or wedge-shaped gate (disc) to start or stop fluid flow through a pipeline. When the gate is fully raised, the pipe bore is completely open — producing virtually zero pressure drop and full-bore flow. When fully lowered, the gate seats tightly against the valve body, providing bi-directional shut-off. The gate valve is used exclusively for on/off isolation service and is not suitable for throttling or flow regulation.

In fire protection, the gate valve is required by NFPA 13 as the primary water supply control valve for sprinkler systems. The OS&Y (outside screw and yoke) rising stem gate valve is specifically mandated because the visible rising stem provides unambiguous visual confirmation of valve position — eliminating the risk of inadvertent system isolation.

Gate Valve Types — OS&Y, NRS, Grooved, Resilient Wedge

The four main gate valve types used in fire protection and industrial pipelines:

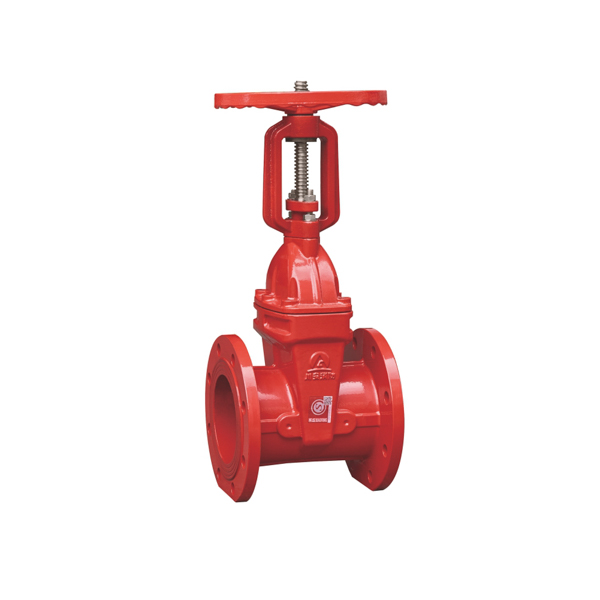

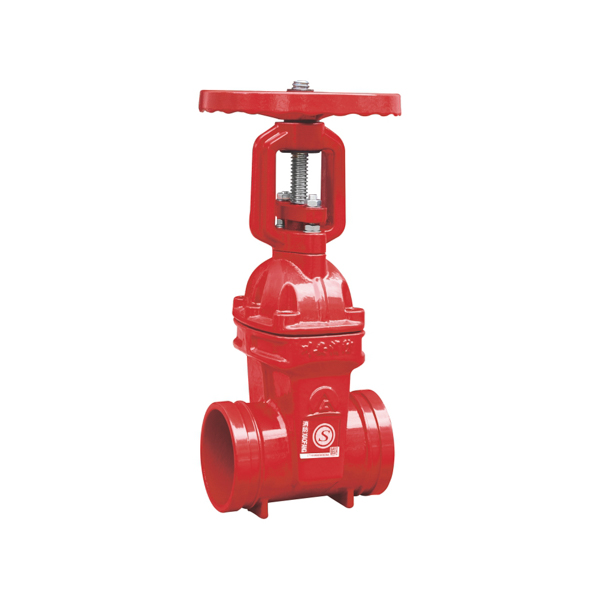

• OS&Y (Outside Screw and Yoke) Rising Stem Gate Valve — the threaded stem section rises above the bonnet as the valve opens. Visible stem position confirms open or closed status without needing to look at a gauge or indicator. Mandatory under NFPA 13 and many local fire codes for fire suppression water supply control. See the OS&Y Gate Valve page.
• NRS (Non-Rising Stem) Gate Valve — the stem nut rotates in place without the stem extending upward. Installed height remains constant — ideal for underground installations, pit-mounted applications, and locations with limited headroom above the valve. Available up to DN600. See the NRS Gate Valve page.

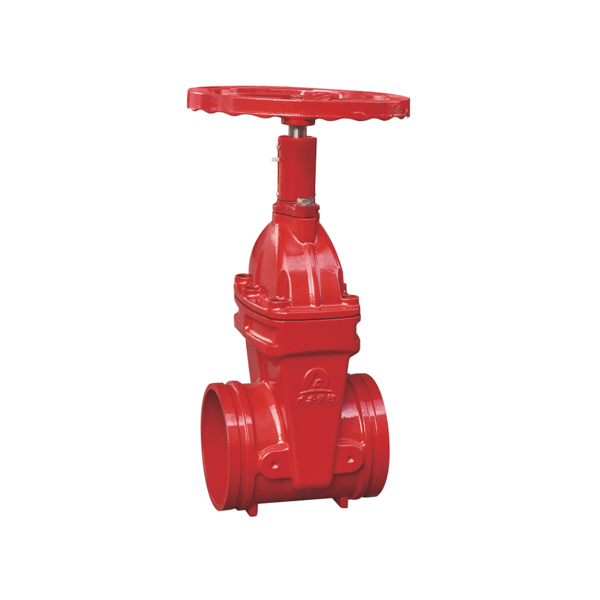

• Grooved Gate Valve — Victaulic-compatible grooved ends allow installation with mechanical pipe couplings — no flange drilling or bolt-circle alignment required. Up to 40% faster to install than flanged equivalents. See the Grooved Gate Valve page.
• Resilient Wedge Gate Valve — EPDM rubber-encapsulated wedge provides bubble-tight shut-off with lower operating torque. The EPDM coating protects the wedge from scale build-up and corrosion. Used in municipal water supply, fire water ring mains, and HVAC chilled water systems. See the Resilient Wedge Gate Valve page.

Gate Valve vs. Ball Valve — Key Differences

The most common comparison is gate valve vs ball valve. Both serve as isolation valves, but the gate valve is preferred for larger pipe sizes (DN100 and above) where it provides full-bore flow at lower cost. The ball valve opens and closes faster (quarter-turn) and is better for frequent cycling and compact installations. For fire suppression headers, municipal water mains, and process isolation at large diameters, the gate valve remains the industry standard because of its full-bore flow and lower pressure drop. For NFPA 13 fire systems, the OS&Y gate valve with visible stem position is widely preferred over ball valves for primary water supply control.

Gate Valve vs. Globe Valve

In a gate valve vs globe valve comparison, the gate valve excels at fully open or fully closed service with minimal pressure drop. The globe valve's S-shaped flow path is designed for throttling and flow regulation, but creates significant pressure drop in the fully open position. For long-run pipeline isolation at large diameters — water mains, steam headers, fire water supply — the gate valve's full-bore, low-resistance design makes it the more energy-efficient choice.

Gate Valve Tamper Switch — NFPA 13 & NFPA 72 Supervision

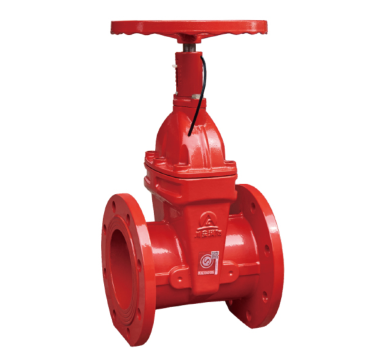

A gate valve with tamper switch (supervisory switch) adds electrical position monitoring to the standard gate valve. The built-in DC24V microswitch outputs a continuous "OPEN" supervisory signal to the fire alarm control panel (FACP) when the valve is fully open. Any movement from the full-open position — even partial — triggers a "TAMPER" supervisory alarm within seconds. This satisfies NFPA 72 Chapter 17 and NFPA 13 §8.16.1(1) for electrically supervised water supply control valves on monitored fire suppression systems. See the Gate Valve with Tamper Switch page.

Gate Valve Applications

• Gate valve for fire protection: OS&Y rising stem gate valves on sprinkler system water supply mains and zone control valves. Tamper switch version for electrically supervised FACP systems.
• Gate valve for water: Municipal water supply distribution mains, water treatment plant isolation, building water meter assemblies, and irrigation headers.
• Gate valve for steam: High-temperature steam distribution, power plant turbine isolation, and heat exchanger inlet/outlet isolation. Carbon steel or stainless steel body for steam service.
• Gate valve for fire hydrant: Post indicator valves (PIV) and underground fire service main isolation adjacent to fire hydrant assemblies.
• Gate valve in plumbing: Residential and commercial building water supply shut-off valves at property boundary, water heater isolation, and branch line isolation.
• Stainless steel gate valve: Chemical process, food & beverage, pharmaceutical, and marine applications where corrosion resistance is critical.

Gate Valve Sizes and Dimensions

CA-FIRE gate valves are available from DN50 2 inch) to DN600 (24 inch). Common stocked sizes include 1 inch gate valve, 2 inch gate valve, 3 inch gate valve, 4 inch gate valve, 6 inch gate valve, and 8 inch gate valve in flanged and grooved configurations. Metric sizes DN50 to DN300 are available ex-stock in cast iron and ductile iron with flanged ends to DIN PN16, ANSI 150#, or GB PN16. Larger sizes DN400–DN600 are available on request.
