Both are large-K-factor warehouse ceiling sprinklers, but they operate on fundamentally different design philosophies. ESFR (Early Suppression Fast Response) is designed to suppress a fire — it uses a fast-response bulb (RTI ≤50, 3mm) and delivers a very high volume of water in a single short event, aimed at knocking the fire down before it reaches full involvement. This requires a wet-pipe system (to avoid any delay), a perfectly clear ceiling, and a minimum 9.0 m ceiling height.

CMSA (Control Mode Special Application) is designed to control a fire — it limits fire spread and heat release to a level that prevents structural damage and allows emergency response, but it does not necessarily extinguish the fire on its own. Because it doesn't rely on a single fast discharge event, it works in dry-pipe and pre-action systems, tolerates structural obstructions at the ceiling, and operates at lower minimum pressures. It is also usable from 7.5 m ceiling height, where ESFR cannot be applied.

Yes — CMSA sprinklers are fully listed for use in dry-pipe and pre-action systems, and this is one of their most important advantages over ESFR. The control-mode design philosophy accommodates the water delivery delay inherent in dry-pipe systems because CMSA does not rely on achieving suppression in the first moments after activation. Instead, multiple heads may open, and the cumulative water application controls the fire.

ESFR, by contrast, relies on early, concentrated water application before the fire grows too large — a delayed dry-pipe delivery can allow the fire to exceed the suppression capability of the head. NFPA 13 restricts ESFR with dry-pipe systems for this reason. For freezer warehouses, buildings with process heat, or unheated storage where wet pipe would freeze, CMSA with a dry-pipe or pre-action system is the standard engineering solution.

The suffix indicates the glass bulb type and associated finish:

• Y — Standard yellow glass bulb, 74°C activation temperature, standard brass finish. This is the most common specification for general warehouse use in ambient temperatures up to 44°C.
• Q5 — 5mm standard response bulb, 68°C activation temperature, special corrosion-resistant finish. Used in cooler environments or where 74°C is considered too high given the maximum ambient temperature rule (activation temperature minus 30°C = max normal ambient, so 68°C = max 38°C ambient).

For most standard warehouses operating below 44°C ambient, the Y (74°C) suffix is the correct specification.

Yes — this is precisely the scenario CMSA is designed for. At 8.5 m ceiling height, ESFR is not permitted (minimum 9.0 m). Deep steel trusses would further disqualify ESFR even if ceiling height were sufficient, because ESFR requires a clear ceiling free of obstructions.

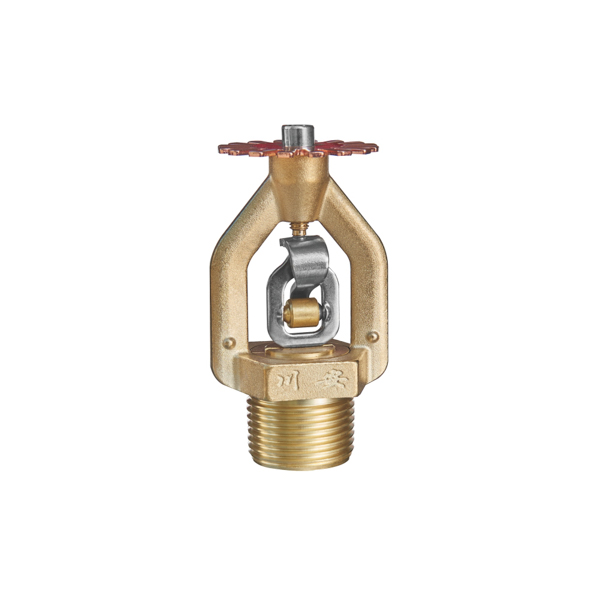

CMSA at 8.5 m ceiling height would use the 7.5 m ceiling height listing (conservative, but correct — use the next lower listed ceiling height if your actual height falls between listed values). For storage up to 6.0 m high, CMSAZ or CMSAX K17.0 (K242) at 0.10 MPa minimum pressure is the typical specification. The obstruction rules for CMSA are less restrictive than ESFR, allowing the system to work around structural elements that ESFR cannot accommodate.

Have your fire protection engineer review the specific truss geometry against NFPA 13 CMSA obstruction criteria to confirm clearance.

NFPA 13 requires a minimum clearance of 1.0 m (approximately 3 ft) between the top of the highest storage and the sprinkler deflector for warehouse special application sprinklers. This clearance is required to allow the sprinkler spray to fully develop before it strikes the top of the stored goods.

Practically, this means: if your ceiling is 9.0 m, the maximum storage height is 8.0 m (9.0 m minus the deflector drop below the ceiling of approximately 0 m plus the 1.0 m clearance). The table above already accounts for this — the listed maximum storage heights include the clearance allowance. Confirm the exact clearance requirement with your system designer for your specific CMSA model and ceiling height.

Yes, mixing is permitted but requires careful hydraulic design. CMSA and standard sprinklers have different K-factors, different minimum pressures, and different design basis rules — they cannot be hydraulically calculated as a single uniform zone. Typically, the CMSA-protected storage area is treated as a separate hydraulic design area from any adjacent standard-hazard spaces. The pipe system is designed to deliver the required pressure and flow to the most demanding CMSA area independently.

This is common in distribution centres where the main storage hall uses CMSA at the ceiling, and office areas, loading docks, or corridors in the same facility use standard K5.6 or K8.0 sprinklers on separate branches.
