Sidewall Fire Sprinkler Head

A sidewall sprinkler mounts on a wall near the ceiling rather than on the ceiling itself. Its specially shaped deflector throws water outward and downward in a quarter-sphere pattern across the room. A pendent sprinkler hangs below the ceiling pipe and distributes water symmetrically downward in a full hemisphere.

The key advantage of the sidewall is that it needs no ceiling pipe run — the branch pipe simply runs along the wall. This makes it ideal for renovations, listed buildings, hotel corridors, and any space where installing overhead pipework would be structurally impractical or prohibitively expensive.

For standard ZSTBS and K-ZSTBS models, the maximum room width from a single sidewall head is typically 4.8 m and maximum room area up to approximately 18–20 m² (varies by ceiling height and hazard class). For rooms up to 9 m wide, two sidewall heads can be installed on opposite walls.

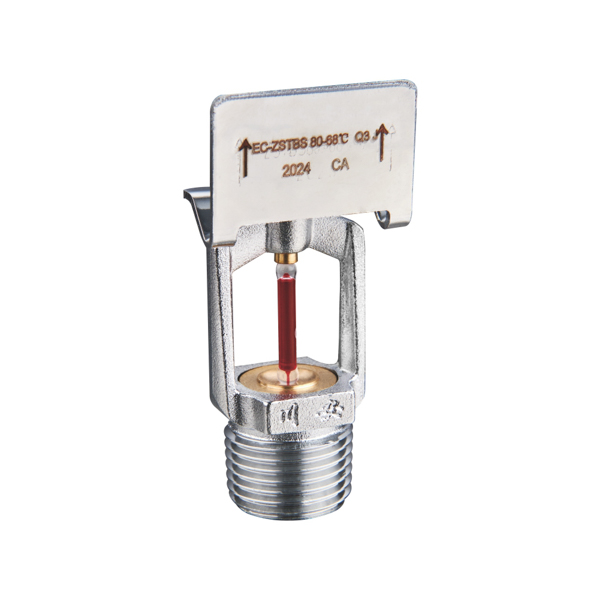

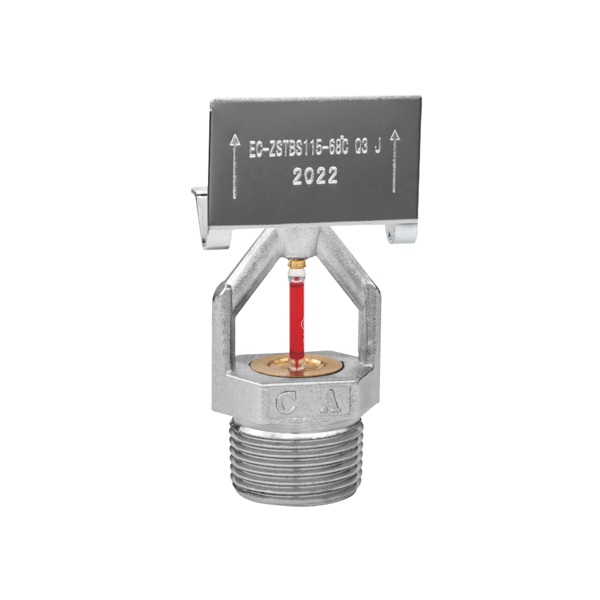

For larger open-plan spaces, the EC-ZSTBS Extended Coverage series can cover up to 36 m² per head, reducing the total number of heads and piping required. Always verify coverage against your specific room dimensions and ceiling height with your system designer.

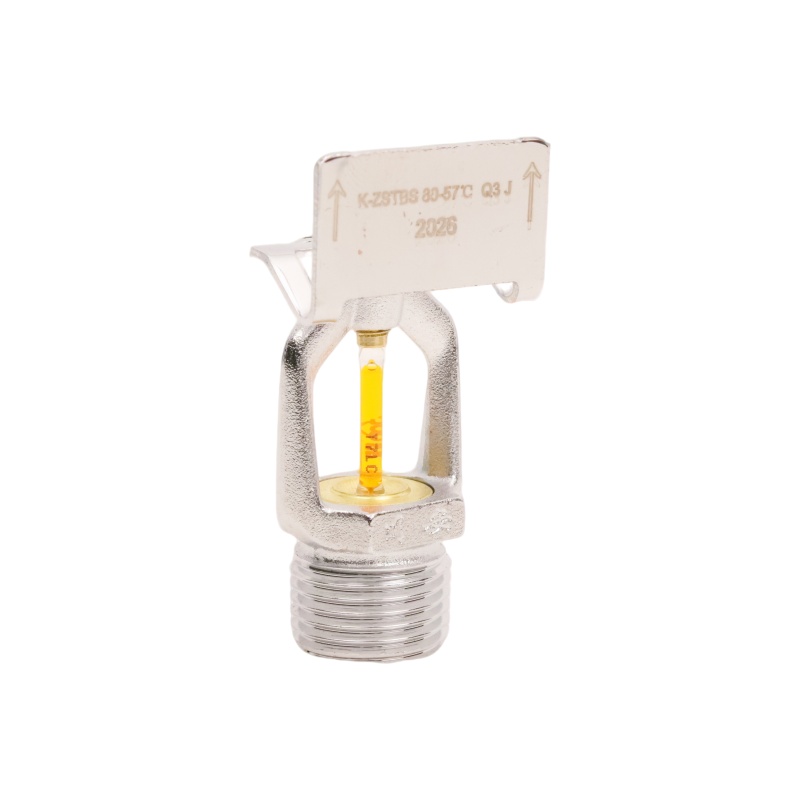

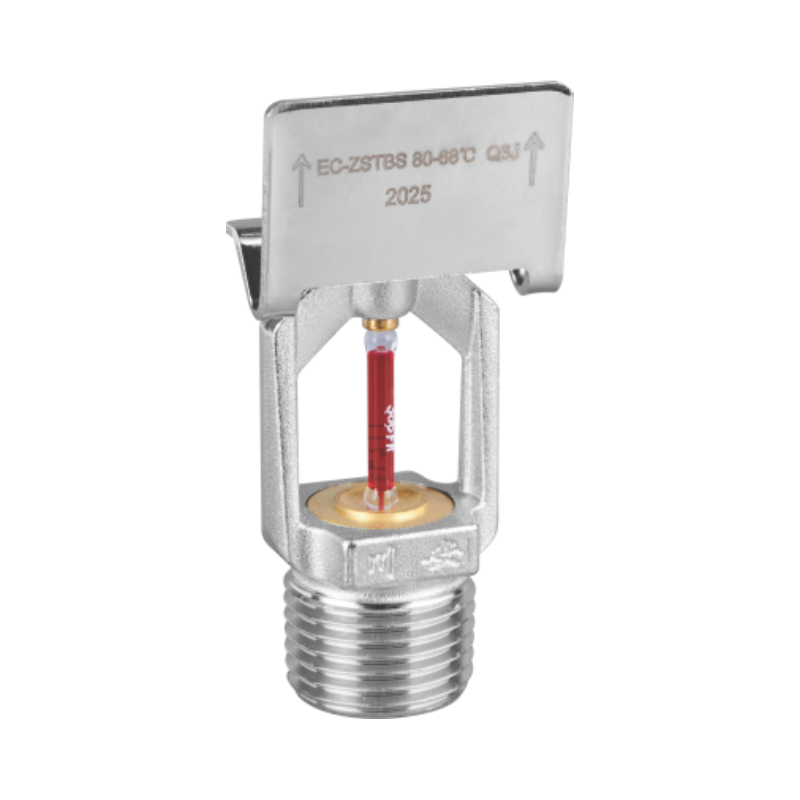

Quick response (K-ZSTBS, RTI ≤50) is required by NFPA 13 for light-hazard occupancies — hotels, residences, hospitals, offices — where life safety during occupant egress is the primary objective. If your project requires NFPA 13 compliance, QR is almost always specified for sidewall heads in guest rooms and corridors.

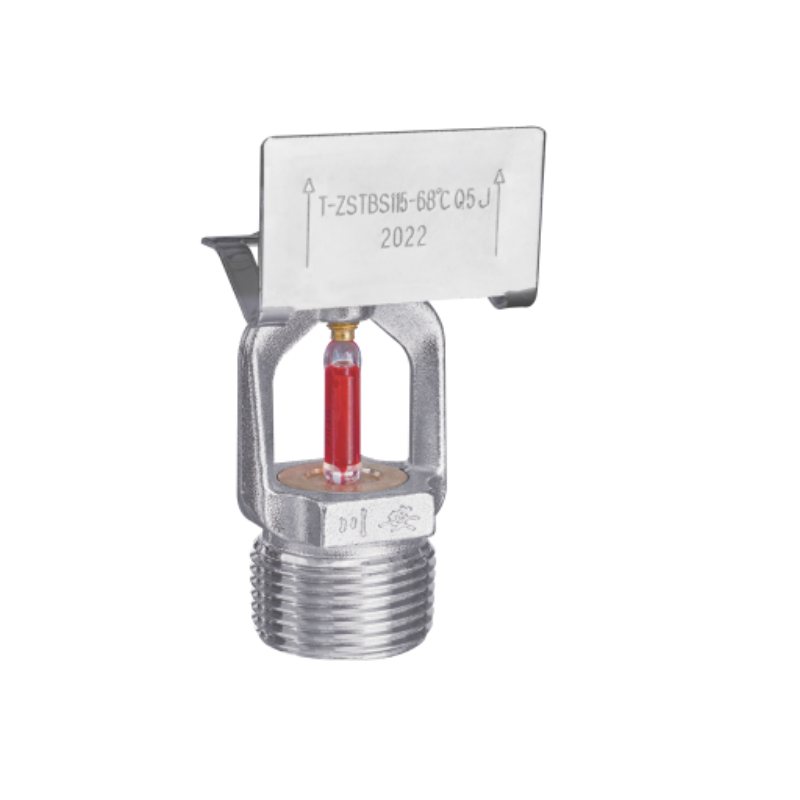

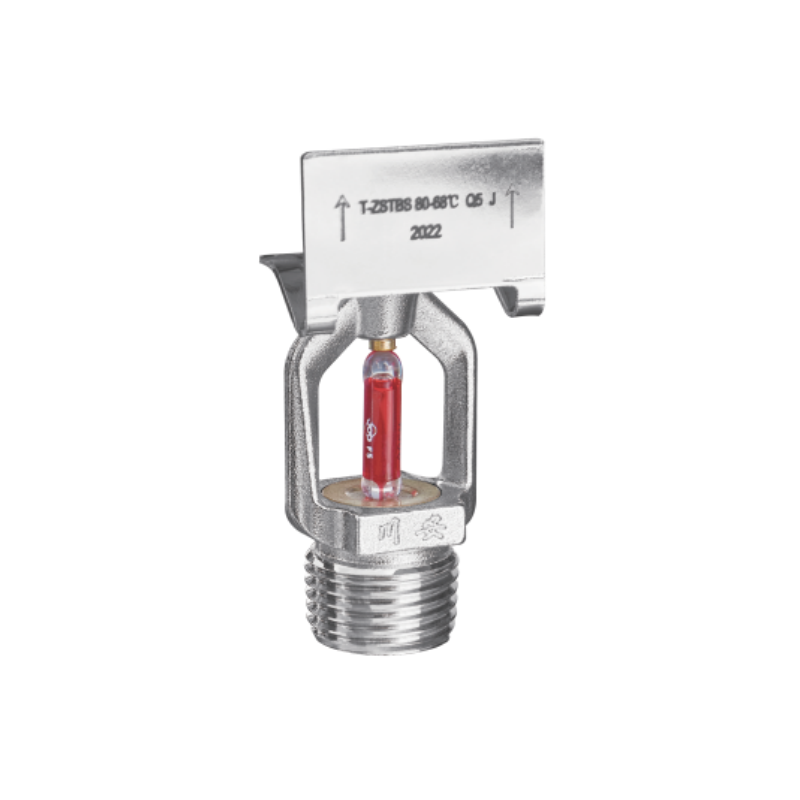

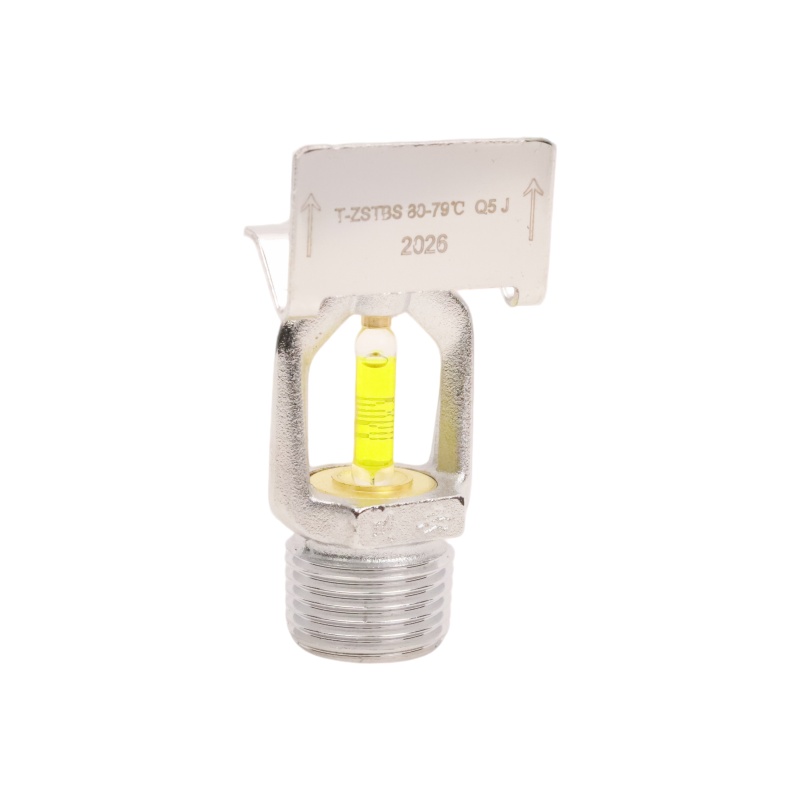

Standard response (ZSTBS, RTI 80–350) is acceptable for ordinary-hazard occupancies and many GB 50084 applications where property protection is the primary objective. When in doubt, specify quick response — the cost difference is marginal and performance is superior.

Standard horizontal sidewall sprinklers are generally not recommended for dry-pipe systems in cold climates. In a dry-pipe system, water must travel horizontally from the pipe into the sprinkler orifice — drainage back is less efficient than with upright heads, and ice can form at the horizontal orifice in freezing conditions. For dry-pipe systems requiring sidewall installation, consult CA-FIRE for appropriate solutions including extended dry-sidewall versions.

In CA-FIRE's model coding system, the letter after the RTI designation refers to the finish and orientation:
J — Standard zinc alloy finish (most common)

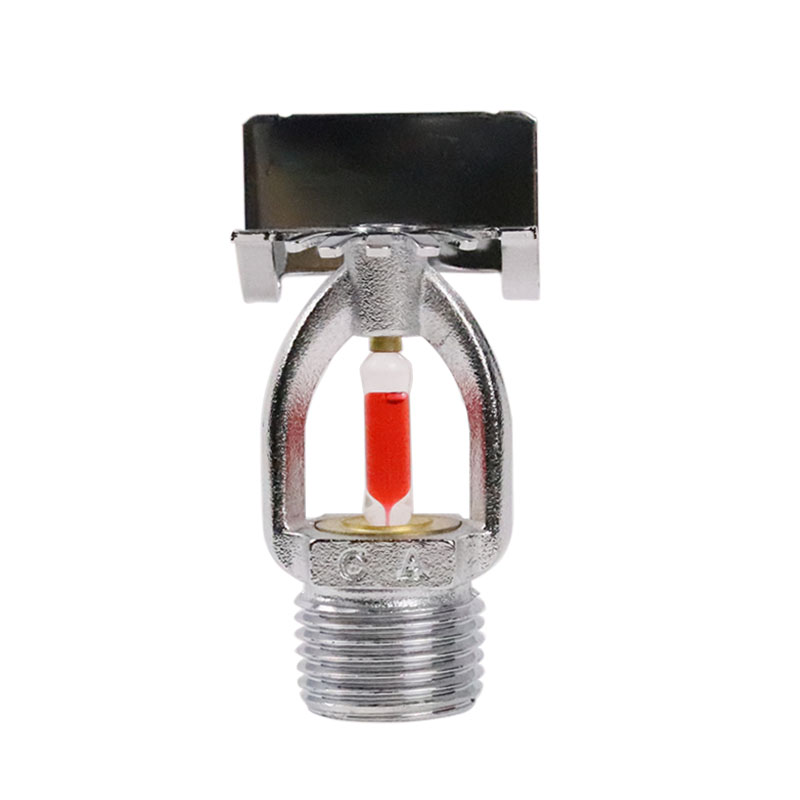

C — Chrome (镀铬) finish — for architecturally exposed installations where a polished chrome appearance is required

Fire performance is identical between J and C finish variants of the same base model.

Per NFPA 13 and GB 50084, the sidewall sprinkler deflector should be positioned 100–150 mm (4–6 inches) below the ceiling. Installing too close to the ceiling (less than 100 mm) risks wetting the ceiling and reducing spray effectiveness. Installing too far below (more than 150 mm) reduces coverage effectiveness as the upper part of the room fills with smoke before the sprinkler activates.

Always follow the specific installation instructions in the product submittal document, as some EC-ZSTBS extended coverage models may have different requirements.
