Pendent Fire Sprinkler Head

A pendent sprinkler hangs downward from the branch pipe with its deflector facing down — it discharges water in a hemispherical pattern below the ceiling. An upright sprinkler points upward from the branch pipe with its deflector facing up — water is thrown upward and deflected outward and downward by the upward-facing deflector.

Functionally, both types protect the same floor area and use the same hydraulic K-factors. The choice is determined by pipe routing: if the branch pipe runs above the finished ceiling with sprinklers penetrating through, pendent is the standard choice. If the pipe runs below the ceiling in an exposed system (common in warehouses and industrial buildings), upright sprinklers are typically preferred as they face away from the pipe and have better thermal sensitivity in that orientation.

Pendent and upright sprinklers are not interchangeable — using a pendent head in an upright position (or vice versa) will cause incorrect water distribution, dangerous large droplets, and invalid fire protection. Always verify the installation orientation matches the sprinkler type.

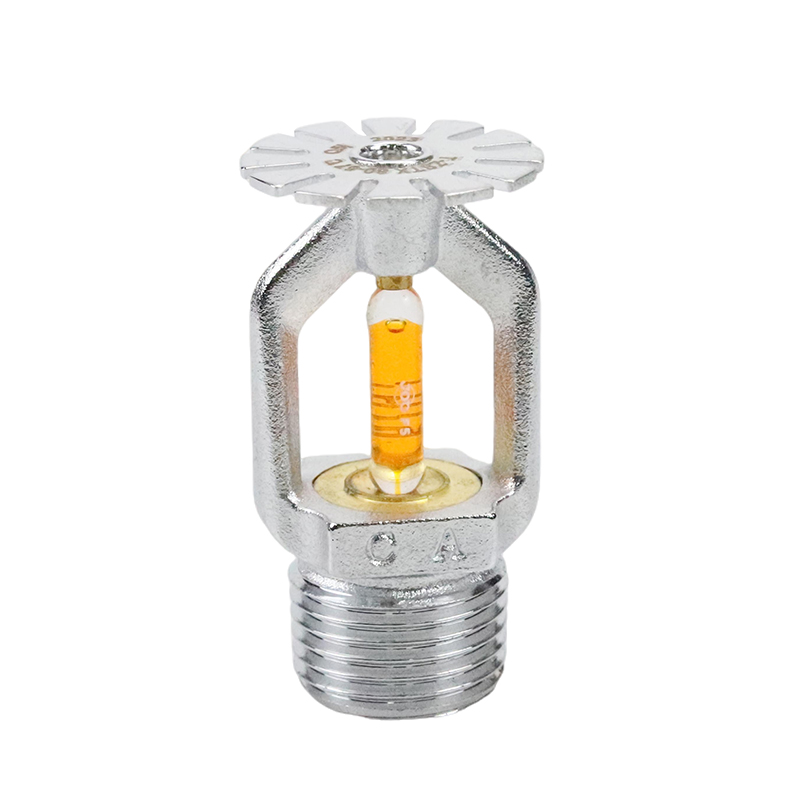

Quick response (RTI ≤ 50 (m·s)½) is required by NFPA 13 for light-hazard occupancies — hotels, offices, schools, healthcare facilities, and similar spaces where life safety during occupant egress is the primary design objective. The faster activation helps suppress the fire earlier, keeping exit routes passable for longer. GB 50084 has equivalent requirements for civilian public buildings.

Standard response (RTI 80–350 (m·s)½) is acceptable for ordinary and extra hazard occupancies — warehouses, manufacturing, storage — where the primary objective is property protection rather than occupant egress. Standard response heads are also used in high-temperature environments where the glass bulb needs a thicker wall to withstand ambient conditions.

If you are unsure which applies to your project, check your system design basis against GB 50084 Table 5.0.1 (Chinese projects) or NFPA 13 Section 10.2 (international/export projects). CA-FIRE technical sales can also provide guidance based on your occupancy type.

The K-factor is the hydraulic flow coefficient of the sprinkler, defined by the equation Q = K × √P, where Q is flow rate (L/min) and P is pressure at the sprinkler (bar in metric units). A higher K-factor produces more water flow at the same pressure.

K5.6 (metric K80) is the standard choice for most residential, light-hazard, and ordinary hazard occupancies. At 0.10 MPa (1 bar) working pressure, a K5.6 sprinkler flows approximately 80 L/min (21 gpm). K8.0 (metric K115) delivers approximately 115 L/min (30 gpm) at 1 bar — used when the hydraulic design requires greater discharge density, typically in ordinary hazard Group 2 and extra hazard occupancies.

For warehouses with storage heights above 7.5 m, neither K80 nor K115 is typically sufficient — see our ESFR sprinkler page for K14.0 / K17.0 / K25.2 (metric K202 / K242 / K363) warehouse options.

Sprinkler replacement must be performed by a qualified fire protection contractor in all jurisdictions. Replacing a sprinkler with the wrong type, temperature rating, or K-factor can render the system non-compliant with its design basis and potentially void your insurance coverage and fire certificate.

Before ordering replacement heads, identify the existing sprinkler's model number (stamped on the deflector or frame), activation temperature (glass bulb color), K-factor, and thread size. CA-FIRE can supply exact-specification replacement sprinklers for both our own products and many equivalent third-party models. Contact our technical sales team with the existing model details for a direct replacement recommendation.

Per NFPA 25 ↗, replacement sprinklers must match the temperature rating, K-factor, and response type of the original. The system should be taken offline, the area cleared, and the system re-pressurised and tested after any replacement work.

Maximum spacing depends on hazard classification and sprinkler type under both GB 50084 and NFPA 13. The key limits for CA-FIRE pendent sprinklers are:

Standard / Quick Response (K5.6 / K8.0): Light Hazard — max 4.6 m spacing, max 20.9 m² per head (NFPA 13) or max 20 m² per head (GB 50084). Ordinary Hazard — max 4.0 m spacing, max 12.1 m² per head. Extra Hazard — max 3.7 m spacing, max 9.3 m² per head. Minimum spacing between heads: 1.8 m in all classes.

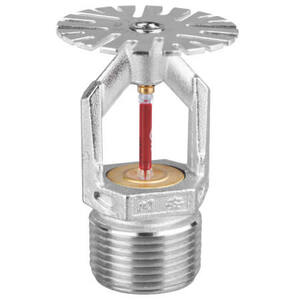

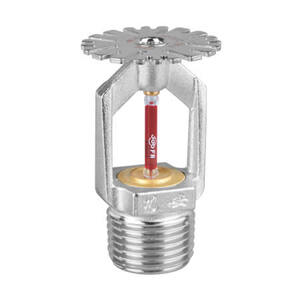

Extended Coverage (EC-ZSTZ/EC-ZSTX): Up to 6.0 m spacing, up to 36 m² per head, subject to hydraulic design validation meeting the required discharge density at maximum spacing. EC coverage rules require specific minimum operating pressures to be met at every head under design flow conditions — verify with hydraulic calculations before specifying.
